SS-UCFPL SS-UCFPL204
Technical Details
| Bore Diameter (mm) d | Outer Diameter (mm) D | Width (mm) B | Weight (Kg) |
|---|---|---|---|
| 20 3/4 | 31.0 1.221 | 0.29 |
KZ SERIES: SS-UCFPL204 SS-UCFPL208 SS-UCFPL212
Category Thermoplastic Bearing
MATERIAL : Housing unit: PBT glass-filled thermoplastic polyamide
INSERT BEARING : Stainless Steel 420.
SS-UCFPL: This unit features a square 4-bolt flange design for strong, stable mounting. The SS-UCFPL’s thermoplastic body paired with a stainless steel bearing insert excels in corrosive, wash down-heavy environments. Ideal for wall or panel mounting, its rigid shape supports heavier radial and axial loads with low noise and vibration. Common in cleanrooms and food equipment, it ensures durability, hygiene, and easy maintenance.
Applications and industry: Automotive, Food and beverage processing, Packaging, Textile and printing.

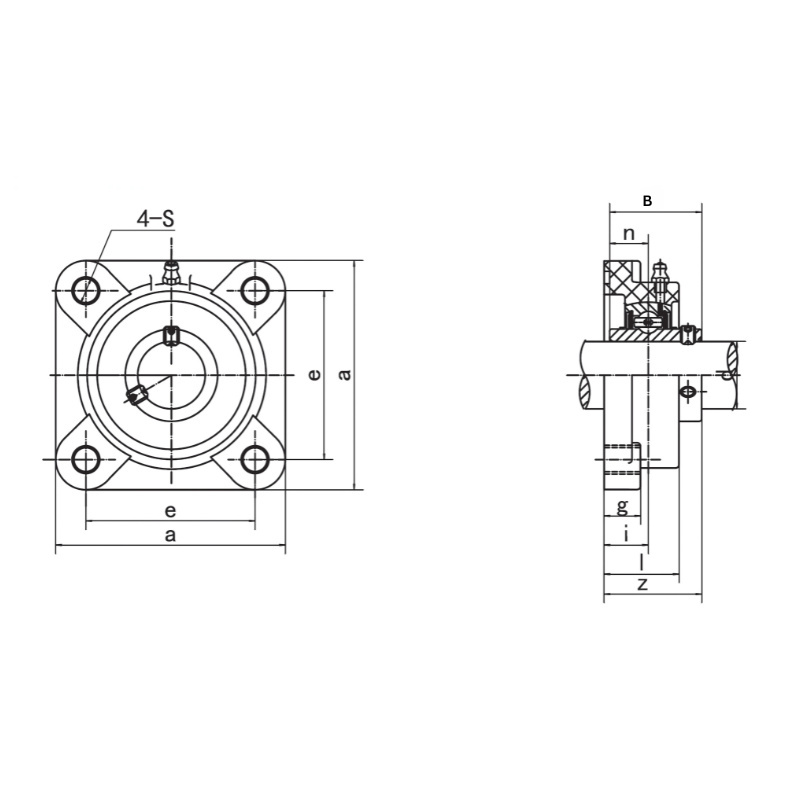

| Bearing Number | Inner Diameter (d) MM | Width (B) MM | a | l | s | g | e | i | z | f | N | Weight (KG) | Housing No. | Bolt Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SS-UCFPL204 | 20 3/4 | 31.0 1.221 | 86.0 3-3/8 | 27.8 1-3/32 | 11.0 7/ 16 | 13.4 17/32 | 63.5 2-33/64 | 18.0 45/64 | 36.3 1-7/ 16 | 18 | 12.7 0.500 | 0.29 | FPL204 | M10 3/8 |
| SS-UCFPL205 | 25 13116 ; 7/8; 15116 ; I | 34.1 1.343 | 95.0 3-3/4 | 28.0 1-3/32 | 11.0 7/16 | 14.3 9116 | 70.0 2-3/4 | 17.0 43/64 | 36.7 1-7/16 | 25 | 14.3 0.563 | 0.36 | FPL205 | M10 3/8 |
| SS-UCFPL206 | 30 1-1/16; 1-1/8 ; 1-3/16 ; 1-1/4 | 38.1 1.500 | 107.0 4-7/32 | 31.5 1-15/64 | 11.0 7/16 | 14.3 9116 | 83.0 3-17/64 | 19.2 3/4 | 41.4 1-518 | 30 | 15.9 0.626 | 0.5 | FPL206 | M10 3/8 |
| SS-UCFPL207 | 35 1-1/4 ; 1-5116 ; 1-318; 1-7/16 | 42.9 1.689 | 118.0 4-21/32 | 34.8 1-3/8 | 13.0 33/64 | 15.5 39/64 | 92.0 3-518 | 21.5 27/32 | 46.9 1-27/32 | 35 | 17.5 0.689 | 0.74 | FPL207 | M12 7/16 |
| SS-UCFPL208 | 40 1-1/2 ; 1-9116 | 49.2 1.937 | 130.0 5-118 | 37.5 1-15/32 | 14.0 35/64 | 17.0 43/64 | 102.0 4-1/64 | 23.0 29/32 | 53.2 2-3/32 | 40 | 19.0 0.748 | 0.97 | FPL208 | M12 7/ 16 |
| SS-UCFPL209 | 45 1-5/8 ; 1-11/16 ; 1-3/4 | 49.2 1.937 | 137.0 5-13/32 | 41.0 1-39164 | 17.0 43/64 | 19.0 3/4 | 105.0 4-9/64 | 24.0 15/16 | 54.2 2-9/64 | 45 | 19.0 0.748 | 1.1 | FPL209 | M16 5/8 |
| SS-UCFPL210 | 50 1-13/16 ; 1-7/8 ; 1-15/ 16 ; 2 | 51.6 2.032 | 143.0 5-518 | 43.0 1-1 1/16 | 17.0 43164 | 21.0 53164 | 111.0 4-318 | 25.0 63164 | 57.6 2-17/64 | 50 | 19.0 0.748 | 1.25 | FPL210 | M16 5/8 |
| SS-UCFPL211 | 55 2 ;2-1/ 16 ; 2-118; 2-3/16 | 55.6 2.189 | 162.0 6-318 | 43.0 1-11/16 | 19.0 3/4 | 20.0 25/32 | 130.0 5-118 | 25.0 63/64 | 58.4 2-19164 | 55 | 22.2 0.874 | 1.4 | FPL211 | M16 5/8 |
| SS-UCFPL212 | 60 2-1/4 ;2-5/16 ; 2-3/8 ; 2-7/16 | 65.1 2.563 | 175.0 6-57/64 | 48.0 1-57/64 | 19.0 3/4 | 20.0 25/32 | 143.0 5-5/8 | 29.0 1-9/64 | 68.7 2-45164 | 60 | 25.4 1.000 | 1.6 | FPL212 | M16 5/8 |
