SS-UCFLPL SS-UCFLPL212
Technical Details
| Bore Diameter (mm) d | Outer Diameter (mm) D | Width (mm) B | Weight (Kg) |
|---|---|---|---|
| 60 | 140 | 1.6 |
KZ SERIES: SS-UCFLPL204 SS-UCFLPL209 SS-UCFLPL212
Category Thermoplastic Bearing
MATERIAL : Housing unit: PBT glass-filled thermoplastic polyamide
INSERT BEARING : Stainless Steel 420.
SS-UCFLPL: The SS-UCFLPL has an oval 2-bolt flange housing, combining compactness with strength. Its thermoplastic body and stainless steel insert resist corrosion, making it perfect for food-grade and wet environments. The oval shape offers a versatile fit for side or surface mounting where space is constrained. It provides smooth, quiet rotation while handling moderate loads, ideal for conveyors, bottling lines, and light-duty machinery.
Applications and industry: Automotive, Food and beverage processing, Packaging, Textile and printing.

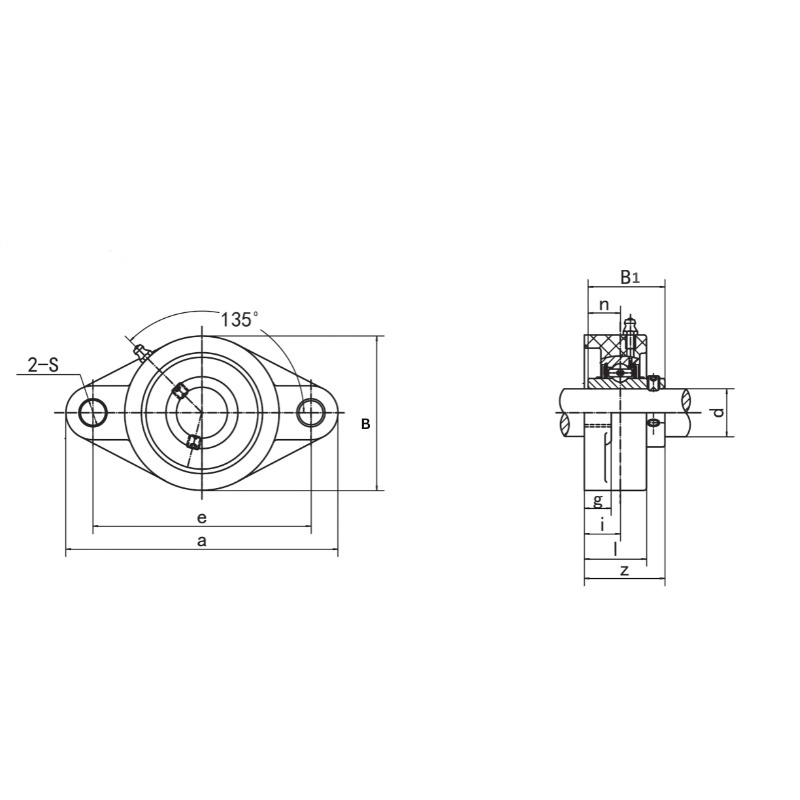

| Bearing Number | Inner Diameter (d) MM | Width (B) MM | Dimension-B1 (MM) | a | l | s | g | e | i | z | n | F Min | Weight (KG) | Housing No. | Bolt Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SS-UCFLPL212 | 60 | 140 | 65.1 | 250 | 48 | 23 | 18 | 202 | 29 | 68.7 | 25.4 1 | 60 | 1.6 | FLPL2 12 | M16 |
| SS-UCFLPL212-36 | 2-1/4 | 5-33/64 | 2.563 | 9-27/32 | 1-57/64 | 29/32 | 15/64 | 7-61/64 | 1-9/64 | 2-45/64 | 1 | 60 | 1.6 | FLPL2 12 | 3/4 |
| SS-UCFLPL212-37 | 2-5/16 | 5-33/64 | 2.563 | 9-27/32 | 1-57/64 | 29/32 | 15/64 | 7-61/64 | 1-9/64 | 2-45/64 | 1 | 60 | 1.6 | FLPL2 12 | 3/4 |
| SS-UCFLPL212-38 | 2-3/8 | 5-33/64 | 2.563 | 9-27/32 | 1-57/64 | 29/32 | 15/64 | 7-61/64 | 1-9/64 | 2-45/64 | 1 | 60 | 1.6 | FLPL2 12 | 3/4 |
| SS-UCFLPL212-39 | 2-7/16 | 5-33/64 | 2.563 | 9-27/32 | 1-57/64 | 29/32 | 15/64 | 7-61/64 | 1-9/64 | 2-45/64 | 1 | 60 | 1.6 | FLPL2 12 | 3/4 |
