SS-UCFBPL SS-UCFBPL212
Technical Details
| Bore Diameter (mm) d | Outer Diameter (mm) D | Width (mm) B | Weight (Kg) |
|---|---|---|---|
| 60 | 84 | 94 | 1.63 |
KZ SERIES: SS-UCFBPL204 SS-UCFBPL209 SS-UCFBPL212
Category Thermoplastic Bearing
MATERIAL : Housing unit: PBT glass-filled thermoplastic polyamide
INSERT BEARING : Stainless Steel 420.
SS- UCFBPL: The SS-UCFBPL features a 2-bolt flange design in a thermoplastic (PBT) housing with a stainless steel insert. Compact and easy to mount on flat surfaces, it provides strong axial and radial support in hygienic environments. Ideal for limited-space installations, it offers excellent corrosion resistance and smooth, maintenance-free performance. Commonly used in food and packaging lines, it allows stable, reliable motion in wash down or chemical-exposed conditions
Applications and industry: Pharmaceutical, and Chemical industries, Marine Industry, Food & Beverage Industry, Packaging & Bottling Plants

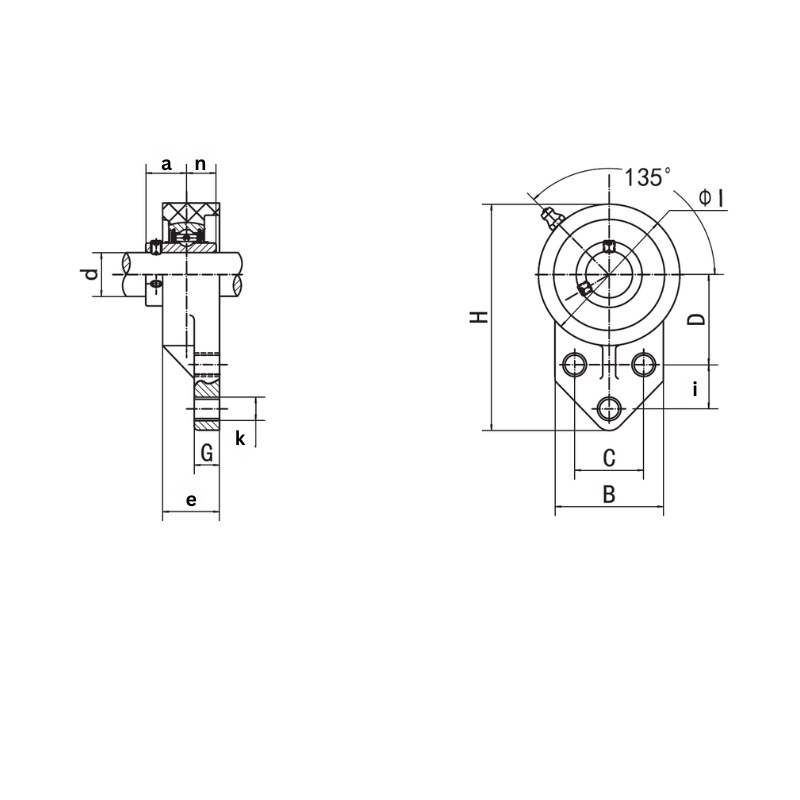

| Bearing Number | Inner Diameter (d) MM | Width (B) MM | Dimension-B1 (MM) | a | l | s | g | e | i | z | n | F Min | Weight (KG) | Housing No. | Bolt Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SS-UCFBPL212 | 60 | 94 | 39.7 | 140 | 48 | 55 | 25.4 | 1.63 | FBPL212 | M14 | |||||
| SS-UCFBPL212-36 | 2-1/4 | 3-11/16 | 1.563 | 5-33/64 | 1-7/8 | 2-5/32 | 1.000 | 1.63 | FBPL212 | 1/2 | |||||
| SS-UCFBPL212-37 | 2-5/16 | 3-11/16 | 1.563 | 5-33/64 | 1-7/8 | 2-5/32 | 1.000 | 1.63 | FBPL212 | 1/2 | |||||
| SS-UCFBPL212-38 | 2-3/8 | 3-11/16 | 1.563 | 5-33/64 | 1-7/8 | 2-5/32 | 1.000 | 1.63 | FBPL212 | 1/2 | |||||
| SS-UCFBPL212-39 | 2-7/16 | 3-11/16 | 1.563 | 5-33/64 | 1-7/8 | 2-5/32 | 1.000 | 1.63 | FBPL212 | 1/2 |
