LMF LMF10
Technical Details

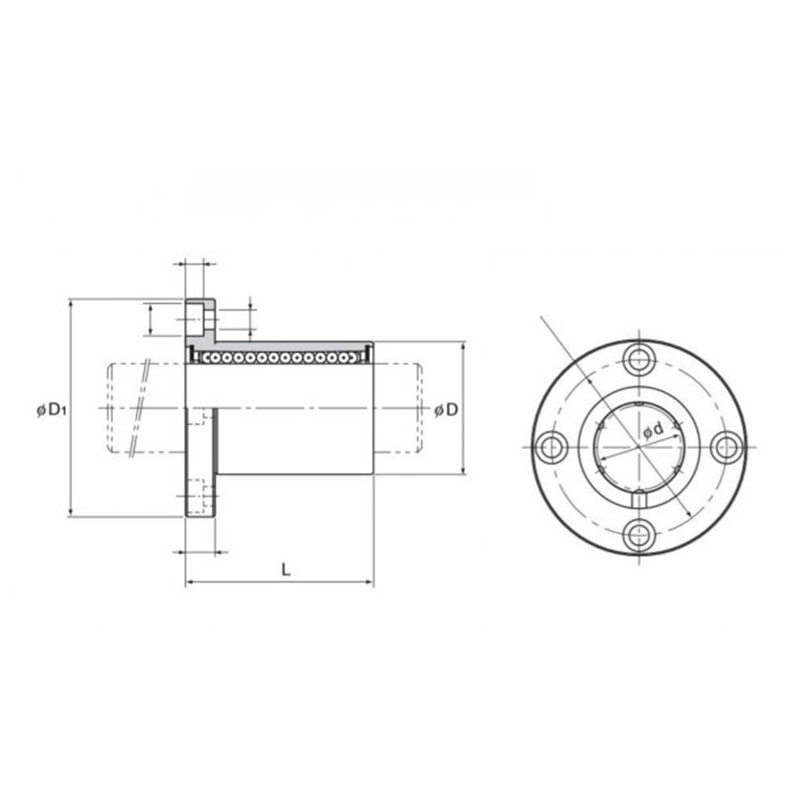

| Bore Diameter (mm) d | Outer Diameter (mm) D | Width (mm) B | Weight (Kg) |
|---|---|---|---|
| 10 | 19 | 0.078 |
LMF10 Linear bearings are bearing elements for translation-type motion. As in the case of rotary bearings, a distinction is drawn as to whether the forces occurring are transmitted by means of rolling or sliding elements. Each linear design has particular characteristics that make it especially suitable for particular bearing arrangements.
- Enable high precision linear motion on round shafts
- Sustain heavy loads with low noise and high stiffness
- Perform under almost any environmental conditions and load capacities to satisfy a wide range of applications
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY
| Bearing Number | Inner Diameter (d) MM | Outer Diameter (D) MM | Width (B) MM | Width C | t | Basic Load Rating (N) Dyn. C | Basic Load Rating (N) Stat. C0 | LIMITTING SPEED ( R/MIN ) LUBRICATION Grease | LIMITTING SPEED ( R/MIN ) LUBRICATION Oil | Weight (KG) |
|---|---|---|---|---|---|---|---|---|---|---|
| LMF10 | 10 | 19 | 0.078 | |||||||
| LMF12 | 12 | 21 | 0.076 | |||||||
| LMF13 | 13 | 23 | 0.094 | |||||||
| LMF16 | 16 | 28 | 0.134 | |||||||
| LMF20 | 20 | 32 | 0.18 | |||||||
| LMF25 | 25 | 40 | 0.34 | |||||||
| LMF30 | 30 | 45 | 0.46 | |||||||
| LMF35 | 35 | 52 | 0.795 | |||||||
| LMF40 | 40 | 60 | 1.054 | |||||||
| LMF50 | 50 | 80 | 2.2 | |||||||
| LMF60 | 60 | 90 | 2.96 |
