Single Row Angular Contact Ball Bearings 7000 AC

Technical Details

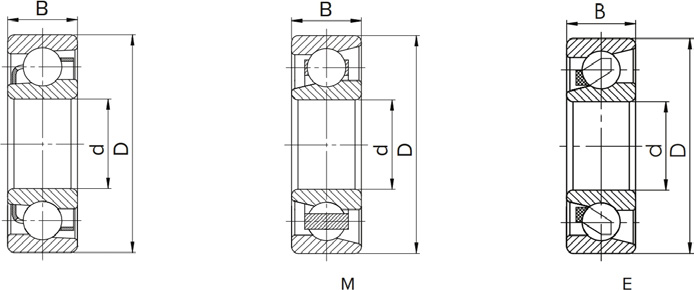

Bore Diameter (mm) d	Outer Diameter (mm) D	Width (mm) B	Weight (Kg)
10	26	8	0.025

KZ SERIES : 7000 AC, 7200 AC, 7204 AC, 7301 AC, 7304 AC

MATERIAL : Chrome Steel SAE52100/100Cr6/GCr15 , Stainless Steel 420 and 440

QUALITY : ABEC 1, ABEC3, ABEC5, ABEC7

Single row angular contact ball bearings 7000 AC can accommodate axial loads in one direction only. This type of bearing is typically adjusted against a second bearing. Their bearing rings are relatively offset as such to have an upper and a lower shoulder and are non-separable with single raceway grooves in the inner and outer rings. Single row Angular Contact Ball Bearings are known for their performance and high accuracy. This type of bearings can carry a high axial and radial load.

KZ BEARING SERIES

Metric Series : 7000, 7200, 7300, 7400, 7900, 71800, 71900

Inch Series : XLT, ALS, AMS

CAGES : MACHINED BRASS CAGE, POCKET-TYPE POLYAMIDE CAGE, PRESSED STEEL CAGE

Applications and industry: AUTOMOTIVE, HOME APPLIANCES, FLUID MACHINERY, TEXTILE INDUSTRY, AEROSPACE APPLICATIONS, MACHINE TOOL APPLICATION, PUMPS AND MOTORS, RAILD ROAD APPLICATIONS,

Send query Buy Now

Bearing Number	Inner Diameter (d) MM	Outer Diameter (D) MM	Width (B) MM	Basic Load Rating (N) Dyn. C	Basic Load Rating (N) Stat. C0	LIMITTING SPEED ( R/MIN ) LUBRICATION Grease	LIMITTING SPEED ( R/MIN ) LUBRICATION Oil	Weight (KG)
7000 AC	10	26	8	5000	2350	34000	42000	0.025
7000 B	10	26	8	4650	2150	25000	33000	0.025
7000 C	10	26	8	5300	2450	47000	62000	0.025
7001 AC	12	28	8	5400	2750	29000	37000	0.027
7001 B	12	28	8	4950	2500	22000	29000	0.027
7001 C	12	28	8	5800	2950	40000	54000	0.027
7002 AC	15	32	9	6100	3450	26000	32000	0.039
7002 B	15	32	9	5550	3150	19000	25000	0.039
7002 C	15	32	9	6600	3700	35000	47000	0.039
7003 AC	17	35	10	6750	4150	23000	28000	0.051
7003 B	17	35	10	6100	3750	17000	23000	0.051
7003 C	17	35	10	7300	4450	31000	41000	0.051
7004 AC	20	42	12	10300	6100	19000	24000	0.089
7004 B	20	42	12	9350	5550	14000	19000	0.089
7004 C	20	42	12	11100	6600	26000	35000	0.089
7005 AC	25	47	12	11300	7400	17000	21000	0.103
7005 B	25	47	12	10200	6700	12000	17000	0.103
7005 C	25	47	12	12300	8000	23000	30000	0.103
7006 AC	30	55	13	14500	10100	14000	18000	0.15
7006 B	30	55	13	13100	9200	11000	14000	0.15
7006 C	30	55	13	15800	11000	20000	26000	0.15
7007 AC	35	62	14	17500	12600	12000	15000	0.207
7007 B	35	62	14	15800	11400	9200	12000	0.207
7007 C	35	62	14	19100	13700	17000	22000	0.207
7008 AC	40	68	15	18700	14600	11000	14000	0.247
7008 B	40	68	15	16800	13200	8300	11000	0.247
7008 C	40	68	15	20500	15900	15000	20000	0.247
7009 AC	45	75	16	22200	17700	10000	12000	0.31
7009 B	45	75	16	20000	16000	7500	10000	0.31
7009 C	45	75	16	24400	19300	14000	18000	0.31
7010 AC	50	80	16	23600	20100	9200	11000	0.35
7010 B	50	80	16	21200	18100	6900	9200	0.35
7010 C	50	80	16	26000	21900	13000	17000	0.35
7011 AC	55	90	18	31100	26300	8300	10000	0.47
7011 B	55	90	18	27900	23700	6200	8300	0.47
7011 C	55	90	18	34100	28600	11000	15000	0.47
7012 AC	60	95	18	31900	28100	7700	9700	0.5
7012 B	60	95	18	28600	25300	5800	7700	0.5
7012 C	60	95	18	35000	30600	11000	14000	0.5
7013 AC	65	100	18	33700	31400	7200	9000	0.54
7013 B	65	100	18	30100	28300	5400	7200	0.54
7013 C	65	100	18	37100	34300	10000	13000	0.54
7014 AC	70	110	20	42700	39400	6600	8300	0.81
7014 B	70	110	20	38300	35500	5000	6600	0.81
7014 C	70	110	20	46900	43000	9200	12000	0.81
7015 AC	75	115	20	43600	41700	6300	7800	0.86
7015 B	75	115	20	39100	37600	4700	6300	0.86
7015 C	75	115	20	48000	45600	8700	11000	0.86
7016 AC	80	125	22	53400	50600	5800	7200	1.11
7016 B	80	125	22	47800	45700	4300	5800	1.11
7016 C	80	125	22	58700	55300	8000	11000	1.11
7017 AC	85	130	22	54600	53700	5500	6800	1.25
7017 B	85	130	22	48800	48400	4100	5500	1.25
7017 C	85	130	22	60100	58700	7600	10000	1.25
7018 AC	90	140	24	65200	63300	5100	6400	1.58
7018 B	90	140	24	58400	57100	3900	5100	1.58
7018 C	90	140	24	71700	69100	7100	9400	1.58
7019 AC	95	145	24	66600	67100	4800	6000	1.67
7019 B	95	145	24	59600	60500	3600	4800	1.67
7019 C	95	145	24	73400	73400	6700	8900	1.67
7020 AC	100	150	24	68400	70600	4700	5900	1.72
7020 B	100	150	24	61200	63600	3500	4700	1.72
7020 C	100	150	24	75300	77200	6500	8600	1.72
7021 AC	105	160	26	79800	81900	4400	5500	2.16
7021 B	105	160	26	71400	73800	3300	4400	2.16
7021 C	105	160	26	87800	89600	6000	8000	2.16
7022 AC	110	170	28	91900	92800	4200	5200	2.71
7022 B	110	170	28	82300	83700	3100	4200	2.71
7022 C	110	170	28	101000	101000	5800	7700	2.71
7024 AC	120	180	28	96600	103000	3900	4900	2.94
7024 B	120	180	28	86400	93000	2900	3900	2.94
7024 C	120	180	28	106000	113000	5400	7100	2.94
7026 AC	130	200	33	117000	125000	3500	4400	4.43
7026 B	130	200	33	105000	113000	2600	3500	4.43
7026 C	130	200	33	129000	137000	4800	6400	4.43
7028 AC	140	210	33	120000	133000	3300	4100	4.7
7028 B	140	210	33	107000	119000	2500	3300	4.7
7028 C	140	210	33	132000	145000	4500	6000	4.7
7030 AC	150	225	35	137000	154000	3000	3800	5.49
7030 B	150	225	35	122000	138000	2300	3000	5.49
7030 C	150	225	35	151000	169000	4200	5500	5.49
7032 AC	160	240	38	155000	176000	2800	3500	6.67
7032 B	160	240	38	139000	158000	2100	2800	6.67
7032 C	160	240	38	171000	193000	3900	5200	6.67
7034 AC	170	260	42	186000	214000	2600	3200	8.92
7034 B	170	260	42	166000	193000	1900	2600	8.92
7034 C	170	260	42	204000	234000	3600	4800	8.92
7036 AC	180	280	46	212000	253000	2400	3000	11.28
7036 B	180	280	46	190000	228000	1800	2400	11.28
7036 C	180	280	46	233000	276000	3300	4400	11.28
7038 AC	190	290	46	217000	268000	2300	2800	12.1
7038 B	190	290	46	194000	241000	1700	2300	12.1
7038 C	190	290	46	239000	293000	3100	4200	12.1
7040 AC	200	310	51	244000	309000	2100	2600	15.59
7040 B	200	310	51	218000	279000	1600	2100	15.59
7040 C	200	310	51	268000	338000	2900	3900	15.59
7044 AC	220	340	56	267000	353000	1900	2400	18.5
7044 B	220	340	56	239000	318000	1400	1900	18.5
7048 AC	240	360	56	273000	375000	1700	2200	19.7
7048 B	240	360	56	244000	338000	1300	1700	19.7
7052 AC	260	400	65	325000	478000	1500	1900	28.7
7052 B	260	400	65	291000	431000	1100	1500	28.7
7056 AC	280	420	65	332000	507000	1400	1800	30.4
7056 B	280	420	65	297000	453000	1100	1400	30.4
7060 AC	300	460	74	426000	680000
