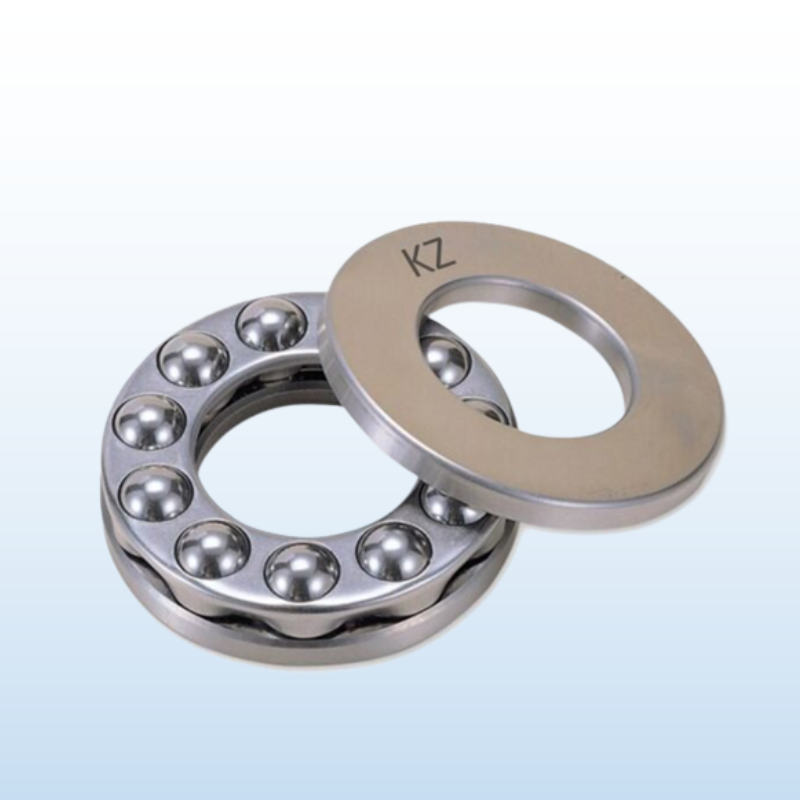

Thrust Ball Bearing

KZ SERIES : 51100, 51200, 51305, 51405, 53202, 53305, 53408, 52202, 52305, 52405

MATERIAL : Chrome Steel SAE52100/100Cr6/GCr15

Thrust ball bearing is composed of bearing balls supported in a ring, can be used in low thrust applications where there is little axial load. Thrust ball bearings are designed to accommodate axial/ thrust loads in one direction or double direction. They are available in ISO metric and inch series. Thrust ball bearings consist of two hardened and ground thrust plates with matching ball grooves on one side and a 1-piece brass cage that contains the precision balls. In some low-speed applications, a full complement of balls is used without the cage to increase thrust capacity. Thrust Ball Bearings are not suitable for high-speed applications. At high speeds, sliding movement between balls and raceways can occur, which may result in smearing.

Single Direction : 51100, 51200, 51300, 51400, 53200, 53300, 53400

Double Direction : 52200, 52300, 52400, 54200, 54300, 54400

Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

CAGE : STEEL, BRASS

Send Query WhatsApp Us

Description

Bearing Number	Inner Diameter (d) MM	Width (B) MM	Weight (KG)
51100	10	9	0.02
51101	12	9	0.022
51102	15	9	0.023
51103	17	9	0.025
51104	20	10	0.038
51105	25	11	0.056
51106	30	11	0.063
51107	35	12	0.08
51108	40	13	0.12
51109	45	14	0.14
51110	50	14	0.16
51111	55	16	0.247
51112	60	17	0.33
51113	65	18	0.359
51114	70	18	0.385
51115	75	19	0.4
51116	80	19	0.42
51117	85	19	0.44
51118	90	22	0.67
51120	100	25	0.97
51122	110	25	1.05
51124	120	25	1.15
51126	130	30	1.85
51128	140	31	2.05
51130	150	31	2.2
51132	160	31	2.35
51134	170	34	3.3
51136	180	34	3.5
51138	190	37	4.05
51140	200	37	4.25
51144	220	37	4.6
51148	240	45	7.55
51152	260	45	8.1
51156	280	53	12
51160	300	62	17.5
51200	10	11	0.031
51201	12	11	0.034
51202	15	12	0.046
51203	17	12	0.053
51204	20	14	0.083
51205	25	15	0.11
51206	30	16	0.13
51207	35	18	0.22
51208	40	19	0.28
51209	45	20	0.3
51210	50	22	0.37
51211	55	25	0.59
51212	60	26	0.65
51213	65	27	0.78
51214	70	27	0.79
51215	75	27	0.83
51216	80	28	0.91
51217	85	31	1.2
51218	90	35	1.7
51220	100	38	2.2
51222	110	38	2.4
51224	120	39	2.65
51226	130	45	4
51228	140	46	4.35
51230	150	50	6.1
51232	160	51	6.55
51234	170	55	8.15
51236	180	56	8.6
51238	190	62	11.7
51240	200	62	12
51305	25	18	0.17
51306	30	21	0.26
51307	35	24	0.38
51308	40	26	0.53
51309	45	28	0.66
51310	50	31	0.94
51311	55	35	1.3
51312	60	35	1.35
51313	65	36	1.5
51314	70	40	2
51315	75	44	2.6
51316	80	44	2.7
51317	85	49	3.55
51318	90	50	3.8
51320	100	55	4.95
51322	110	63	7.85
51324	120	70	11
51326	130	75	13
51328	140	80	15.5
51330	150	80	16
51405	25	24	0.34
51406	30	28	0.52
51407	35	32	0.76
51408	40	36	1.1
51409	45	39	1.4
51410	50	43	2
51411	55	48	2.55
51412	60	51	3.1
51413	65	56	4
51414	70	60	5
51415	75	65	6.75
51416	80	68	7.95
51417	85	72	9.45
51418	90	77	11
51420	100	85	15
51422	110	95	20
51424	120	102	24.2
51426	130	110	32
51428	140	112	34.5
52202	10	22	0.09
52204	15	26	0.15
52205	20	28	0.23
52206	25	29	0.28
52207	30	34	0.42
52208	30	36	0.54
52209	35	37	0.62
52210	40	39	0.71
52211	45	45	1.1
52212	50	46	1.25
52213	55	47	1.35
52215	60	47	1.65
52216	65	48	1.7
52217	70	55	2.35
52218	75	62	3.2
52220	85	67	4.3
52222	95	67	4.7
52224	100	68	5.25
52305	20	34	0.33
52306	25	38	0.49
52307	30	44	0.71
52308	30	49	1.05
52309	35	52	1.3
52310	40	58	1.85
52311	45	64	2.5
52312	50	64	2.7
52313	55	65	2.9
52314	55	72	3.9
52315	60	79	4.85
52316	65	79	5.05
52317	70	87	6.45
52318	75	88	6.6
52320	85	97	8.9
52322	95	110	13.1
52324	100	123	18.4
52405	15	45	0.63
52406	20	52	1
52407	25	59	1.44
52408	30	65	2.03
52409	35	72	2.71
52410	40	78	3.566
52411	45	87	4.7
52412	50	93	6.33
52413	50	101	8.03
52414	55	107	9.71
52415	60	115	11.8
52416	65	120	14.8
52417	65	128	18.6
52418	70	135	20.8
52420	80	150	28.2
52422	90	166	37.8
52424	95	177	48.4
52426	100	192	60.1
53202	15	13.3	0.046
53203	17	13.2	0.054
53204	20	14.7	0.081
53205	25	16.7	0.111
53206	30	17.8	0.139
53207	35	19.9	0.215
53208	40	20.3	0.276
53209	45	21.3	0.317
53210	50	23.5	0.378
53211	55	27.3	0.608
53212	60	28	0.678
53213	65	28.7	0.767
53214	70	28.8	0.793
53215	75	28.3	0.874
53216	80	29.5	0.916
53217	85	33.1	1.25
53218	90	38.5	1.7
53220	100	40.9	2.29
53305	25	19.8	0.176
53306	30	22.6	0.269
53307	35	25.6	0.383
53308	40	28.5	0.548
53309	45	30.1	0.684
53310	50	34.4	0.951
53311	55	39.3	1.29
53312	60	38.3	1.37
53313	65	39.4	1.51
53314	70	44.2	2.01
53315	75	48.1	2.61
53316	80	47.6	2.72
53317	85	53.1	3.52
53318	90	54.6	3.74
53320	100	69.2	4.88
53408	40	38.2	1.08
53409	45	42.4	1.43
53410	50	45.6	1.9
53411	55	50.5	2.52
53412	60	54	3.12
53413	65	60.2	3.96
53414	70	63.6	5.5
53415	75	69	6.85
53416	80	72.2	8
53417	85	77	9.03
53418	90	81.2	11
53420	100	90	15
