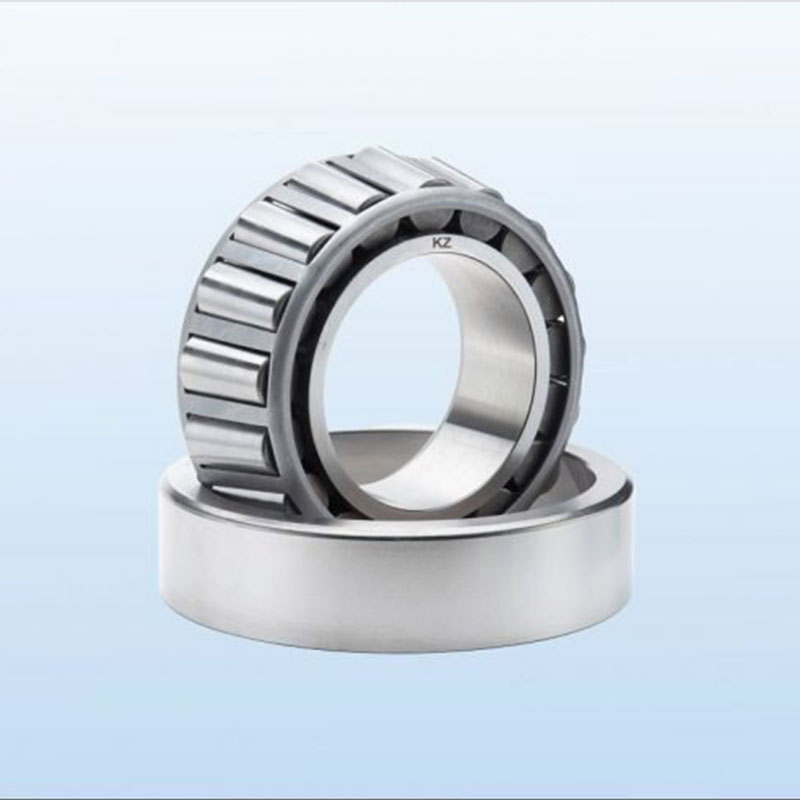

• Tapered Roller Bearing Inch

Tapered Roller Bearing Inch

KZ SERIES :LL217849/LL217810, LM102949/LM102910,  LM29748/LM29710, HM204043/HM204010, HM212049/HM212011, H212749/H212710, H414242/H414210, HH228340/HH228310, M 12649/M 12610,  JM 511945/JM 511910

Taper Roller Bearing

MATERIAL : Chrome Steel SAE52100/100Cr6/GCr15

Tapered roller bearings inch are rolling element bearings that can support axial loads as well as radial loads. The load capacity can be increased or decreased depending on the contact angle being increased or decreased. The higher the degree of angle, the greater the contact angle. These bearings are commonly used for moderate speed, heavy duty applications where durability is required.

Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, HEAVY MACHINERY EQUIPMENTS, MINING SECTOR, METAL INDUSTRY

Send Query WhatsApp Us

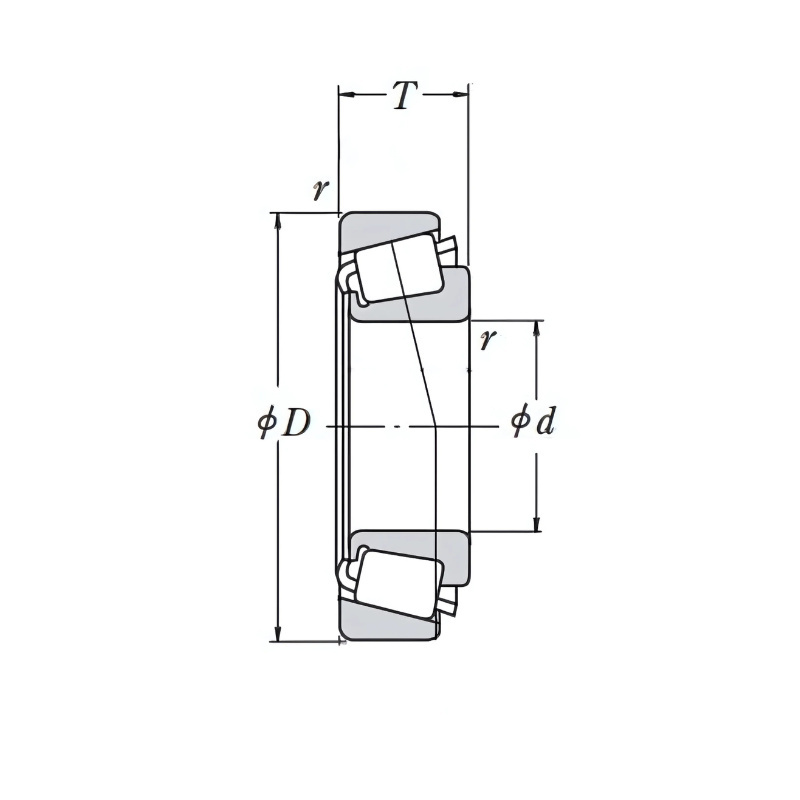

Bearing Number Inner Diameter (d) MM Outer Diameter (D) MM T Size (MM) Weight (KG)
02474/02420 28.58 68.26 22.23 0.4
02475/02420 31.75 68.26 22.23 0.4
02872/02820 28.58 73.03 22.23 0.47
05066/05185 16.99 47 14.38 0.13
07087X/07210X 22.23 50.8 15.01 0.12
07087/07204 22.23 51.99 15.01 0.09
07087/07210X 22.23 50.8 15.01 0.12
07097/07204 25 51.99 15.01 0.1
07100S/07196 25.4 50.01 13.5 0.11
07100S/07210X 25.4 50.8 15.01 0.13
07100/07196 25.4 50.01 13.5 0.11
07100/07204 25.4 51.99 15.01 0.14
09067/09195 19.05 49.23 18.03 0.17
09067/09196 19.05 49.23 21.21 0.19
09074/09194 19.05 49.23 23.02 0.2
09074/09195 19.05 49.23 19.85 0.18
09074/09196 19.05 49.23 23.02 0.2
09081/09195 20.63 49.23 19.85 0.19
09081/09196 20.63 49.23 23.02 0.2
11162/11300 41.28 76.2 18.01 0.33
11163/11300 41.28 76.2 18.01 0.33
11590/11520 15.88 42.86 14.29 0.1
1280/1220 22.23 57.15 22.23 0.28
13685/13621 38.1 69.01 19.05 0.29
13686/13621 38.1 69.01 26.19 0.34
13687/13620 38.1 69.01 19.05 0.29
13687/13621 38.1 69.01 19.05 0.29
1380/1328 22.23 52.39 19.37 0.2
14116/14276 30.23 69.01 19.85 0.35
14118/14274 30 69.01 19.85 0.36
14118/14283 30 72.09 22.39 0.44
14123AA/14274 31.75 69.01 26.98 0.4
14123AA/14276 31.75 69.01 26.98 0.39
14125A/14274 31.75 69.01 19.85 0.35
14125A/14276 31.75 69.01 19.85 0.35
14125A/14283 31.75 72.09 22.39 0.43
14130/14274 33.34 69.01 19.85 0.34
14130/14276 33.34 69.01 19.85 0.34
14131/14274 33.34 69.01 19.85 0.34
14131/14276 33.34 69.01 19.85 0.34
14136A/14276 34.93 69.01 26.98 0.35
14137A/14274 34.93 69.01 19.85 0.32
14137A/14276 34.93 69.01 19.85 0.32
14137AS/14276 34.93 69.01 19.85 0.32
14138A/14274 34.93 69.01 19.85 0.32
14138A/14276 34.93 69.01 19.85 0.32
14138A/14283 34.93 72.09 22.39 0.4
14585/14525 34.93 68.26 20.64 0.31
15100/15245 25.4 62 19.05 0.29
15100/15250 25.4 63.5 20.64 0.32
15100/15250X 25.4 63.5 20.64 0.32
15101/15245 25.4 62 19.05 0.29
15101/15250 25.4 63.5 20.64 0.32
15101/15250X 25.4 63.5 20.64 0.32
15103S/15243 26.16 61.91 19.05 0.29
15103S/15245 26.16 62 19.05 0.29
15106/15245 26.99 62 19.05 0.28
15106/15250 26.99 63.5 20.64 0.31
15106/15250X 26.99 63.5 20.64 0.31
15112/15245 28.58 62 19.05 0.27
15112/15250 28.58 63.5 20.64 0.3
15112/15250X 28.58 63.5 20.64 0.3
15117/15245 29.99 62 19.05 0.26
15118/15245 30.21 62 19.05 0.26
15118/15250 30.21 63.5 20.64 0.29
15118/15250X 30.21 63.5 20.64 0.29
15123/15244 31.75 62 19.75 0.15
15123/15245 31.75 62 18.16 0.24
15123/15250X 31.75 63.5 19.75 0.27
15126/15245 31.75 62 19.05 0.25
15126/15250X 31.75 63.5 20.64 0.28
15578/15520 25.4 57.15 17.46 0.21
15579X/15520 25.99 57.15 17.46 0.21
15580/15520 26.99 57.15 17.46 0.21
16150/16284 38.1 72.24 20.64 0.35
1680/1620 33.34 66.68 20.64 0.3
1779/1729X 23.81 56.9 19.37 0.25
1780/1729 25.4 56.9 19.37 0.24
17887/17831 45.23 79.99 19.84 0.39
18590/18520 41.28 73.03 16.67 0.28
18690/18620 46.04 79.38 17.46 0.33
18790/18720 50.8 85 17.46 0.36
19150/19268 38.1 68.26 15.88 0.23
1985/1922 28.58 57.15 19.85 0.22
1985/1930 28.58 56.9 19.85 0.22
1985/1931 28.58 60.33 19.85 0.27
1985/1932 28.58 58.74 19.05 0.23
1986/1931 25.4 60.33 19.85 0.27
1986/1932 25.4 58.74 19.05 0.26
1988/1922 28.58 57.15 19.85 0.21
1988/1931 28.58 60.33 19.85 0.24
21075/21212 19.05 53.98 22.23 0.25
23690/23620 34.93 73.03 26.99 0.51
24780/24720 41.28 76.2 22.23 0.42
24780/24721 41.28 76.2 25.4 0.46
24781/24720 41.28 76.2 22.23 0.42
24781/24721 41.28 76.2 25.4 0.46
25576/25520 42.86 82.93 23.81 0.57
25577/25520 42.88 82.93 23.81 0.57
25577/25521 42.88 83.06 23.81 0.57
25577/25522 42.88 83.06 23.88 0.57
25577/25523 42.88 82.93 26.99 0.61
25578/25520 42.86 82.93 23.81 0.57
25578/25521 42.86 83.06 23.81 0.57
25578/25522 42.86 83.06 23.88 0.57
25578/25523 42.86 82.93 26.99 0.61
25580/25520 44.45 82.93 23.81 0.55
25580/25521 44.45 83.06 23.81 0.55
25580/25522 44.45 83.06 23.88 0.55
25580/25523 44.45 82.93 26.99 0.59
25581/25520 44.45 82.93 23.81 0.55
25584A/25520 44.99 82.93 23.81 0.55
25584/25520 44.98 82.93 23.81 0.56
25584/25521 44.98 83.06 23.81 0.55
25584/25547RB 44.98 100 25.4 1.32
25590/25520 45.62 82.93 23.81 0.53
25590/25521 45.62 83.06 23.81 0.53
25590/25522 45.62 83.06 23.88 0.53
25590/25523 45.62 82.93 26.99 0.58
2580/2520 31.75 66.42 25.4 0.4
2580/2523 31.75 69.85 23.81 0.44
2585/2523 33.34 69.85 23.81 0.42
25877/25820 34.93 73.03 23.81 0.46
25877/25821 34.93 73.03 23.81 0.46
25878/25820 34.93 73.03 23.81 0.46
25880/25820 36.49 73.03 23.81 0.44
25880/25821 36.49 73.03 23.81 0.44
26878/26823 38.1 76.2 25.4 0.53
26882/26820 41.28 80.17 25.4 0.55
26882/26822 41.28 79.38 23.81 0.51
26884/26823 42.88 76.2 25.4 0.46
2689/2631 28.58 66.42 23.81 0.41
27687/27620 82.55 125.41 25.4 1.05
27690/27620 83.35 125.41 25.4 1.03
27695/27620 84.98 125.41 25.4 0.97
2780/2720 36.49 76.2 23.81 0.51
2780/2729 36.49 76.2 23.81 0.5
2788/2720 38.1 76.2 23.81 0.5
2788/2729 38.1 76.2 23.81 0.5
2789/2720 39.69 76.2 23.81 0.48
2789/2729 39.69 76.2 23.81 0.48
28137/28317 34.93 80.04 21.43 0.49
28579/28520 49.99 89.98 24.75 0.64
28580/28520 50.8 89.98 24.75 0.64
28580/28521 50.8 92.08 24.61 0.68
28580/28527RB 50.8 100 24.61 0.88
28584/28521 52.39 92.08 24.61 0.63
28680/28622 55.56 97.63 24.6 0.75
28682/28621 57.15 96.84 24.61 0.7
28682/28622 57.15 97.63 24.61 0.72
28985/28920 60.33 101.6 25.4 0.79
28985/28921 60.33 100 25.4 0.74
29585/29520 63.5 107.95 25.4 0.93
29586/29520 63.5 107.95 25.4 0.83
29586/29522 63.5 107.95 25.4 0.83
29590/29520 66.68 107.95 25.4 0.83
29590/29522 66.68 107.95 25.4 0.83
29675/29620 69.85 112.71 25.4 0.86
29675/29630 69.85 120.65 25.4 1.15
29685/29620 73.03 112.71 25.4 0.86
29688/29620 73.82 112.71 25.4 0.84
31593/31520 34.93 76.2 29.37 0.62
31594/31520 34.93 76.2 29.37 0.62
33262A/33461 66.68 117.48 30.16 1.33
33262/33462 66.68 117.48 30.16 1.31
33275/33462 69.85 117.48 30.16 1.23
33275/33472 69.85 120 29.79 1.31
33281/33462 71.44 117.48 30.16 1.19
33281/33472 71.44 120 29.79 1.27
33287/33462 73.03 117.48 30.16 1.15
33287/33472 73.03 120 29.79 1.22
336/332 41.28 80 21 0.45
3381/3320 38.1 80.17 29.37 0.68
3382/3320 39.69 80.17 29.37 0.65
3384/3320 41.28 80.17 29.37 0.67
3386/3320 39.69 80.17 29.37 0.65
3386/3325 39.69 79.98 29.37 0.64
33885/33822 44.45 95.25 27.78 0.94
33889/33821 50.8 95.25 27.78 0.83
33889/33822 50.8 95.25 27.78 0.83
33891/33821 52.39 95.25 27.78 0.8
33895/33821 53.98 95.25 27.78 0.78
33895/33822 53.98 95.25 27.78 0.78
342A/332 41.28 80 28.57 0.52
34300/34478 76.2 121.44 24.61 0.93
34300/34500 76.2 127 26.99 1.15
34301/34500 76.2 127 26.99 1.17
34306/34478 77.79 121.44 24.61 0.89
344/332 40 80 21
