LM LME

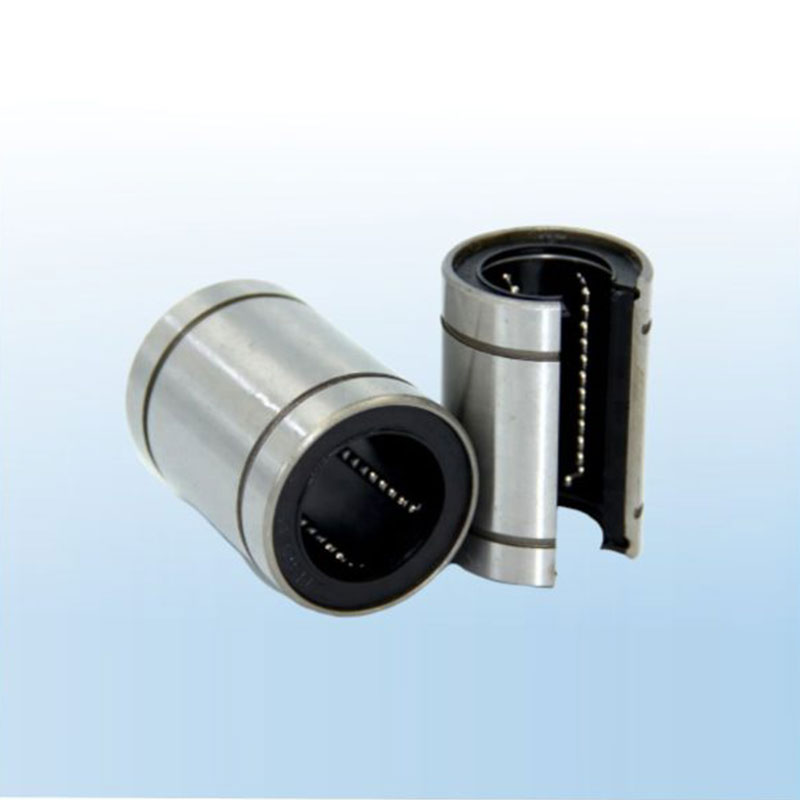

Linear bushing LM/LME presents the most popular linear bearing in India. These types of linear bearings are widely used in different linear motion applications. LM/LME linear bushing has a steel outer ring with grooves for a circlip and a polyamide ball retainer with 3 to 6 ball circuits depending on size. On request, linear ball bushing is also available in stainless steel.
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

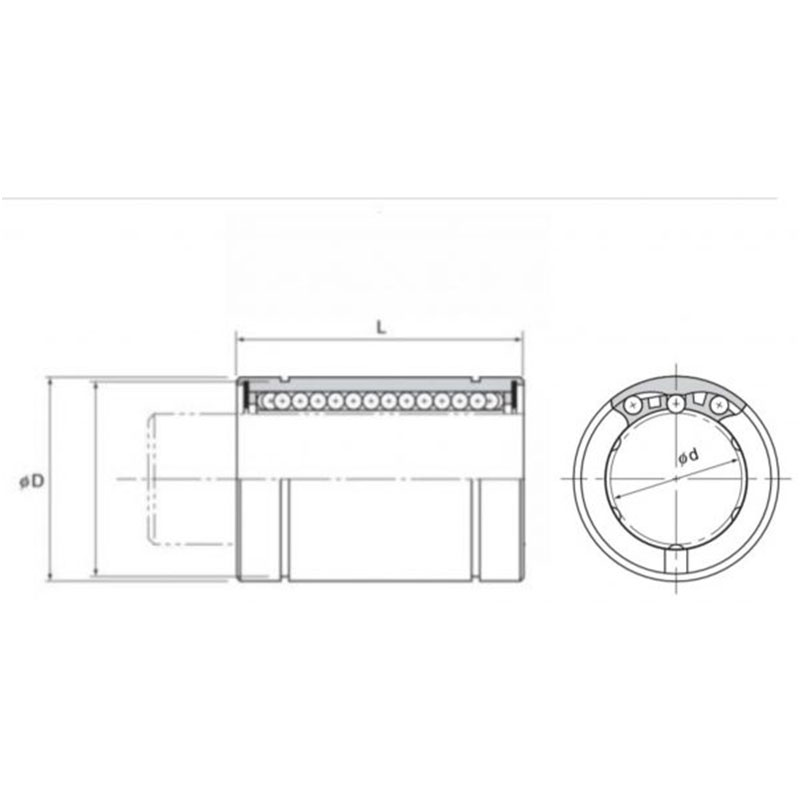

| Bearing Number | Inner Diameter (d) MM | Outer Diameter (D) MM | L | Basic Load Rating (N) Dyn. C | Basic Load Rating (N) Stat. C0 | Dynamic | LIMITTING SPEED ( R/MIN ) LUBRICATION Oil | Weight (KG) |
|---|---|---|---|---|---|---|---|---|
| LM3 | 3 | 7 | 10 | 88.2 | 108 | 0.0014 | ||
| LM4 | 4 | 8 | 12 | 88.2 | 127 | 0.0019 | ||
| LM5 | 5 | 10 | 15 | 167 | 206 | 0.004 | ||
| LM6 | 6 | 12 | 19 | 206 | 265 | 0.008 | ||
| LM8S | 8 | 15 | 17 | 176 | 225 | 0.011 | ||
| LM8 | 8 | 15 | 24 | 265 | 402 | 0.016 | ||
| LM10 | 10 | 19 | 29 | 373 | 549 | 0.03 | ||
| LM12 | 12 | 21 | 30 | 412 | 598 | 0.0315 | ||
| LM13 | 13 | 23 | 32 | 510 | 775 | 0.043 | ||
| LM16 | 16 | 28 | 37 | 775 | 1180 | 0.069 | ||
| LM20 | 20 | 32 | 42 | 863 | 1370 | 0.087 | ||
| LM25 | 25 | 40 | 59 | 980 | 1570 | 0.22 | ||
| LM30 | 30 | 45 | 64 | 1570 | 2750 | 0.25 | ||
| LM35 | 35 | 52 | 70 | 1670 | 3140 | 0.39 | ||
| LM40 | 40 | 60 | 80 | 2160 | 4020 | 0.585 | ||
| LM50 | 50 | 80 | 100 | 3820 | 7940 | 1.58 | ||
| LM60 | 60 | 90 | 110 | 4710 | 10000 | 2 | ||
| LME5 | 5 | 12 | 22 | 206 | 265 | 0.011 | ||
| LME8 | 8 | 16 | 25 | 265 | 402 | 0.02 | ||
| LME12 | 12 | 22 | 32 | 510 | 775 | 0.041 | ||
| LME16 | 16 | 26 | 36 | 775 | 1180 | 0.054 | ||
| LME20 | 20 | 32 | 45 | 863 | 1370 | 0.091 | ||
| LME25 | 25 | 40 | 58 | 980 | 1570 | 0.215 | ||
| LME30 | 30 | 47 | 68 | 1570 | 2750 | 0.325 | ||
| LME40 | 40 | 62 | 80 | 2160 | 4020 | 0.705 | ||
| LME50 | 50 | 75 | 100 | 3820 | 7940 | 1.13 | ||
| LME60 | 60 | 90 | 125 | 4710 | 10000 | 2.22 | ||
| LME80 | 80 | 120 | 165 | 7350 | 16000 | 5.14 |
