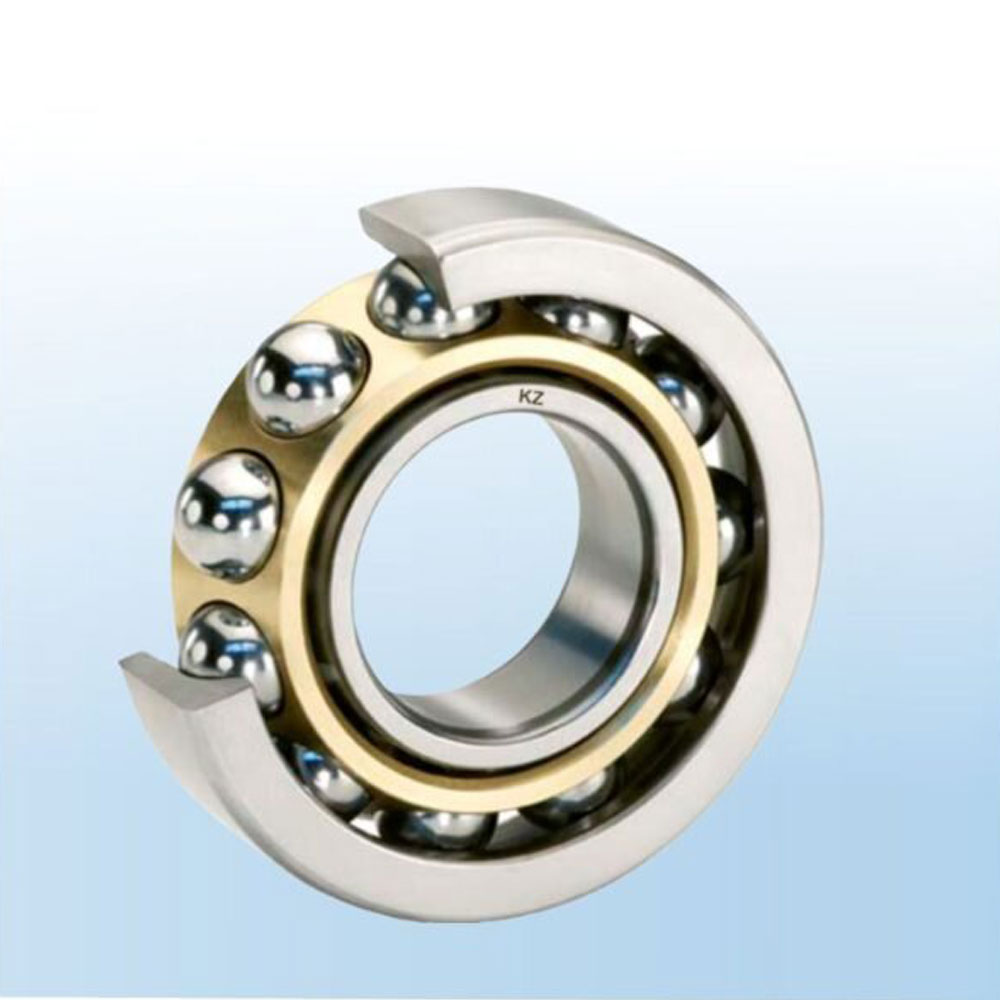

• Single Row Angular Contact Ball Bearings | KG Bearing

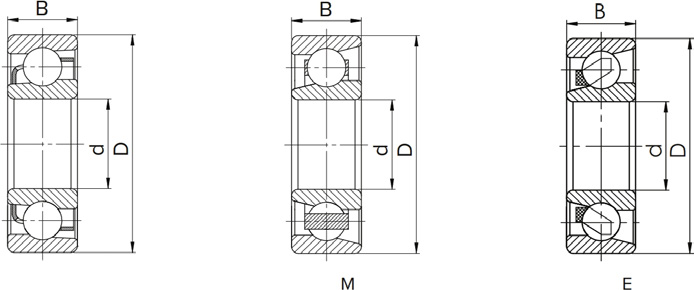

  • Single Row Angular Contact Ball Bearings Line drawing | KG Bearing

Single Row Angular Contact Ball Bearings

KZ SERIES : 7000 AC, 7200 AC, 7204 AC, 7301 AC, 7304 AC

Angular Contact Ball Bearing

MATERIAL : Chrome Steel SAE52100/100Cr6/GCr15 , Stainless Steel 420 and 440

QUALITY : ABEC 1, ABEC3, ABEC5, ABEC7

Single row angular contact ball bearings can accommodate axial loads in one direction only. This type of bearing is typically adjusted against a second bearing. Their bearing rings are relatively offset as such to have an upper and a lower shoulder and are non-separable with single raceway grooves in the inner and outer rings. Single row Angular Contact Ball Bearings are known for their performance and high accuracy. This type of bearings can carry a high axial and radial load.

KZ BEARING SERIES

Metric Series : 7000, 7200, 7300, 7400, 7900, 71800, 71900

Inch Series : XLT, ALS, AMS

CAGES : MACHINED BRASS CAGE, POCKET-TYPE POLYAMIDE CAGE, PRESSED STEEL CAGE

Applications and industry: AUTOMOTIVE, HOME APPLIANCES, FLUID MACHINERY, TEXTILE INDUSTRY, AEROSPACE APPLICATIONS, MACHINE TOOL APPLICATION, PUMPS AND MOTORS, RAILD ROAD APPLICATIONS,

Send Query WhatsApp Us
Bearing Number Inner Diameter (d) MM Outer Diameter (D) MM Width (B) MM Basic Load Rating (N) Dyn. C Basic Load Rating (N) Stat. C0 LIMITTING SPEED ( R/MIN ) LUBRICATION Grease LIMITTING SPEED ( R/MIN ) LUBRICATION Oil Weight (KG)
7000 AC 10 26 8 5000 2350 34000 42000 0.025
7000 B 10 26 8 4650 2150 25000 33000 0.025
7000 C 10 26 8 5300 2450 47000 62000 0.025
7001 AC 12 28 8 5400 2750 29000 37000 0.027
7001 B 12 28 8 4950 2500 22000 29000 0.027
7001 C 12 28 8 5800 2950 40000 54000 0.027
7002 AC 15 32 9 6100 3450 26000 32000 0.039
7002 B 15 32 9 5550 3150 19000 25000 0.039
7002 C 15 32 9 6600 3700 35000 47000 0.039
7003 AC 17 35 10 6750 4150 23000 28000 0.051
7003 B 17 35 10 6100 3750 17000 23000 0.051
7003 C 17 35 10 7300 4450 31000 41000 0.051
7004 AC 20 42 12 10300 6100 19000 24000 0.089
7004 B 20 42 12 9350 5550 14000 19000 0.089
7004 C 20 42 12 11100 6600 26000 35000 0.089
7005 AC 25 47 12 11300 7400 17000 21000 0.103
7005 B 25 47 12 10200 6700 12000 17000 0.103
7005 C 25 47 12 12300 8000 23000 30000 0.103
7006 AC 30 55 13 14500 10100 14000 18000 0.15
7006 B 30 55 13 13100 9200 11000 14000 0.15
7006 C 30 55 13 15800 11000 20000 26000 0.15
7007 AC 35 62 14 17500 12600 12000 15000 0.207
7007 B 35 62 14 15800 11400 9200 12000 0.207
7007 C 35 62 14 19100 13700 17000 22000 0.207
7008 AC 40 68 15 18700 14600 11000 14000 0.247
7008 B 40 68 15 16800 13200 8300 11000 0.247
7008 C 40 68 15 20500 15900 15000 20000 0.247
7009 AC 45 75 16 22200 17700 10000 12000 0.31
7009 B 45 75 16 20000 16000 7500 10000 0.31
7009 C 45 75 16 24400 19300 14000 18000 0.31
7010 AC 50 80 16 23600 20100 9200 11000 0.35
7010 B 50 80 16 21200 18100 6900 9200 0.35
7010 C 50 80 16 26000 21900 13000 17000 0.35
7011 AC 55 90 18 31100 26300 8300 10000 0.47
7011 B 55 90 18 27900 23700 6200 8300 0.47
7011 C 55 90 18 34100 28600 11000 15000 0.47
7012 AC 60 95 18 31900 28100 7700 9700 0.5
7012 B 60 95 18 28600 25300 5800 7700 0.5
7012 C 60 95 18 35000 30600 11000 14000 0.5
7013 AC 65 100 18 33700 31400 7200 9000 0.54
7013 B 65 100 18 30100 28300 5400 7200 0.54
7013 C 65 100 18 37100 34300 10000 13000 0.54
7014 AC 70 110 20 42700 39400 6600 8300 0.81
7014 B 70 110 20 38300 35500 5000 6600 0.81
7014 C 70 110 20 46900 43000 9200 12000 0.81
7015 AC 75 115 20 43600 41700 6300 7800 0.86
7015 B 75 115 20 39100 37600 4700 6300 0.86
7015 C 75 115 20 48000 45600 8700 11000 0.86
7016 AC 80 125 22 53400 50600 5800 7200 1.11
7016 B 80 125 22 47800 45700 4300 5800 1.11
7016 C 80 125 22 58700 55300 8000 11000 1.11
7017 AC 85 130 22 54600 53700 5500 6800 1.25
7017 B 85 130 22 48800 48400 4100 5500 1.25
7017 C 85 130 22 60100 58700 7600 10000 1.25
7018 AC 90 140 24 65200 63300 5100 6400 1.58
7018 B 90 140 24 58400 57100 3900 5100 1.58
7018 C 90 140 24 71700 69100 7100 9400 1.58
7019 AC 95 145 24 66600 67100 4800 6000 1.67
7019 B 95 145 24 59600 60500 3600 4800 1.67
7019 C 95 145 24 73400 73400 6700 8900 1.67
7020 AC 100 150 24 68400 70600 4700 5900 1.72
7020 B 100 150 24 61200 63600 3500 4700 1.72
7020 C 100 150 24 75300 77200 6500 8600 1.72
7021 AC 105 160 26 79800 81900 4400 5500 2.16
7021 B 105 160 26 71400 73800 3300 4400 2.16
7021 C 105 160 26 87800 89600 6000 8000 2.16
7022 AC 110 170 28 91900 92800 4200 5200 2.71
7022 B 110 170 28 82300 83700 3100 4200 2.71
7022 C 110 170 28 101000 101000 5800 7700 2.71
7024 AC 120 180 28 96600 103000 3900 4900 2.94
7024 B 120 180 28 86400 93000 2900 3900 2.94
7024 C 120 180 28 106000 113000 5400 7100 2.94
7026 AC 130 200 33 117000 125000 3500 4400 4.43
7026 B 130 200 33 105000 113000 2600 3500 4.43
7026 C 130 200 33 129000 137000 4800 6400 4.43
7028 AC 140 210 33 120000 133000 3300 4100 4.7
7028 B 140 210 33 107000 119000 2500 3300 4.7
7028 C 140 210 33 132000 145000 4500 6000 4.7
7030 AC 150 225 35 137000 154000 3000 3800 5.49
7030 B 150 225 35 122000 138000 2300 3000 5.49
7030 C 150 225 35 151000 169000 4200 5500 5.49
7032 AC 160 240 38 155000 176000 2800 3500 6.67
7032 B 160 240 38 139000 158000 2100 2800 6.67
7032 C 160 240 38 171000 193000 3900 5200 6.67
7034 AC 170 260 42 186000 214000 2600 3200 8.92
7034 B 170 260 42 166000 193000 1900 2600 8.92
7034 C 170 260 42 204000 234000 3600 4800 8.92
7036 AC 180 280 46 212000 253000 2400 3000 11.28
7036 B 180 280 46 190000 228000 1800 2400 11.28
7036 C 180 280 46 233000 276000 3300 4400 11.28
7038 AC 190 290 46 217000 268000 2300 2800 12.1
7038 B 190 290 46 194000 241000 1700 2300 12.1
7038 C 190 290 46 239000 293000 3100 4200 12.1
7040 AC 200 310 51 244000 309000 2100 2600 15.59
7040 B 200 310 51 218000 279000 1600 2100 15.59
7040 C 200 310 51 268000 338000 2900 3900 15.59
7044 AC 220 340 56 267000 353000 1900 2400 18.5
7044 B 220 340 56 239000 318000 1400 1900 18.5
7048 AC 240 360 56 273000 375000 1700 2200 19.7
7048 B 240 360 56 244000 338000 1300 1700 19.7
7052 AC 260 400 65 325000 478000 1500 1900 28.7
7052 B 260 400 65 291000 431000 1100 1500 28.7
7056 AC 280 420 65 332000 507000 1400 1800 30.4
7056 B 280 420 65 297000 453000 1100 1400 30.4
7060 AC 300 460 74 426000 680000 1300 1600 43.7
7060 B 300 460 74 382000 613000 960 1300 43.7
7064 AC 320 480 74 437000 722000 1200 1500 46
7064 B 320 480 74 391000 651000 890 1200 46
7068 AC 340 520 82 502000 861000 1100 1300 61.8
7068 B 340 520 82 450000 777000 800 1100 61.8
7072 AC 360 540 82 515000 913000 1000 1300 64.6
7072 B 360 540 82 461000 824000 750 1000 64.6
7076 AC 380 560 82 528000 966000 940 1200 67.2
7076 B 380 560 82 472000 870000 700 940 67.2
7200 AC 10 30 9 4650 2200 29000 37000 0.032
7200 B 10 30 9 4300 2000 22000 29000 0.032
7200 C 10 30 9 5000 2350 40000 54000 0.032
7201 AC 12 32 10 7450 3650 27000 34000 0.039
7201 B 12 32 10 6950 3400 20000 27000 0.039
7201 C 12 32 10 7900 3850 38000 50000 0.039
7202 AC 15 35 11 8100 4250 24000 29000 0.048
7202 B 15 35 11 7450 3950 18000 24000 0.048
7202 C 15 35 11 8650 4550 33000 43000 0.048
7203 AC 17 40 12 10200 5500 21000 26000 0.069
7203 B 17 40 12 9350 5050 16000 21000 0.069
7203 C 17 40 12 10900 5900 29000 38000 0.069
7204 AC 20 47 14 14500 8400 17000 22000 0.11
7204 B 20 47 14 13300 7700 13000 17000 0.11
7204 C 20 47 14 15500 9000 24000 32000 0.11
7205 AC 25 52 15 15300 9500 15000 19000 0.13
7205 B 25 52 15 14000 8700 12000 15000 0.13
7205 C 25 52 15 16600 10200 21000 28000 0.13
7206 AC 30 62 16 21300 13700 13000 16000 0.217
7206 B 30 62 16 19400 12500 9600 13000 0.217
7206 C 30 62 16 23000 14700 18000 24000 0.217
7207 AC 35 72 17 19100 13700 17000 22000 0.313
7207 B 35 72 17 28100 18600 11000 14000 0.313
7207 C 35 72 17 25600 17000 8300 11000 0.313
7208 AC 40 80 18 33600 23300 10000 12000 0.402
7208 B 40 80 18 30600 21300 7500 10000 0.402
7208 C 40 80 18 36400 25200 14000 18000 0.402
7209 AC 45 85 19 37700 26600 9400 12000 0.46
7209 B 45 85 19 34300 24300 7000 9400 0.46
7209 C 45 85 19 40800 28700 13000 17000 0.46
7210 AC 50 90 20 39400 29400 8500 11000 0.51
7210 B 50 90 20 35700 26700 6400 8500 0.51
7210 C 50 90 20 42800 31800 12000 16000 0.51
7211 AC 55 100 21 48700 37100 7600 9500 0.68
7211 B 55 100 21 44100 33800 5700 7600 0.68
7211 C 55 100 21 52900 40200 11000 14000 0.68
7212 AC 60 110 22 58900 45700 6900 8600 1.02
7212 B 60 110 22 53400 41600 5100 6900 1.02
7212 C 60 110 22 64000 49500 9500 13000 1.02
7213 AC 65 120 23 67300 54200 6400 8000 1.09
7213 B 65 120 23 60900 49300 4800 6400 1.09
7213 C 65 120 23 73100 58700 8900 12000 1.09
7214 AC 70 125 24 69800 55600 6100 7600 1.18
7214 B 70 125 24 63200 50600 4600 6100 1.18
7214 C 70 125 24 75900 60200 8400 11000 1.18
7215 AC 75 130 25 79200 65200 5800 7200 1.32
7215 B 75 130 25 71700 59300 4300 5800 1.32
7215 C 75 130 25 86100 70600 8000 11000 1.32
7216 AC 80 140 26 85300 71500 5400 6700 1.57
7216 B 80 140 26 77100 65000 4000 5400 1.57
7216 C 80 140 26 92800 77500 7500 9900 1.57
7217 AC 85 150 28 98600 83600 5000 6300 2.01
7217 B 85 150 28 89200 76000 3800 5000 2.01
7217 C 85 150 28 107000 90600 4400 5500 2.01
7218 AC 90 160 30 113000 96700 4700 5900 2.47
7218 B 90 160 30 102000 88000 3500 4700 2.47
