SS-UCPPL SS-UCPPL212

Technical Details

Bore Diameter (mm) d Outer Diameter (mm) D Width (mm) B Weight (Kg)
60 2-1/4 ; 2-5116 ; 2-3/8 ;2-7/ 16 70.0 2-3/4 1.52

KZ SERIES: SS-UCPPL204 SS-UCPPL208 SS-UCPPL212

Category Thermoplastic Bearing

MATERIAL : Housing unit: PBT glass-filled thermoplastic polyamide
INSERT BEARING : Stainless Steel 420

SS-UCPPL - The SS-UCPPL has a standard pillow block design with a high base, offering greater elevation and easier shaft alignment. It features a PBT thermoplastic housing and stainless steel insert, delivering excellent resistance to rust, chemicals, and moisture. Ideal for food and pharmaceutical environments, it supports radial and axial loads and allows for quick installation and easy maintenance in conveyor and machinery setups.

Send query Buy Now

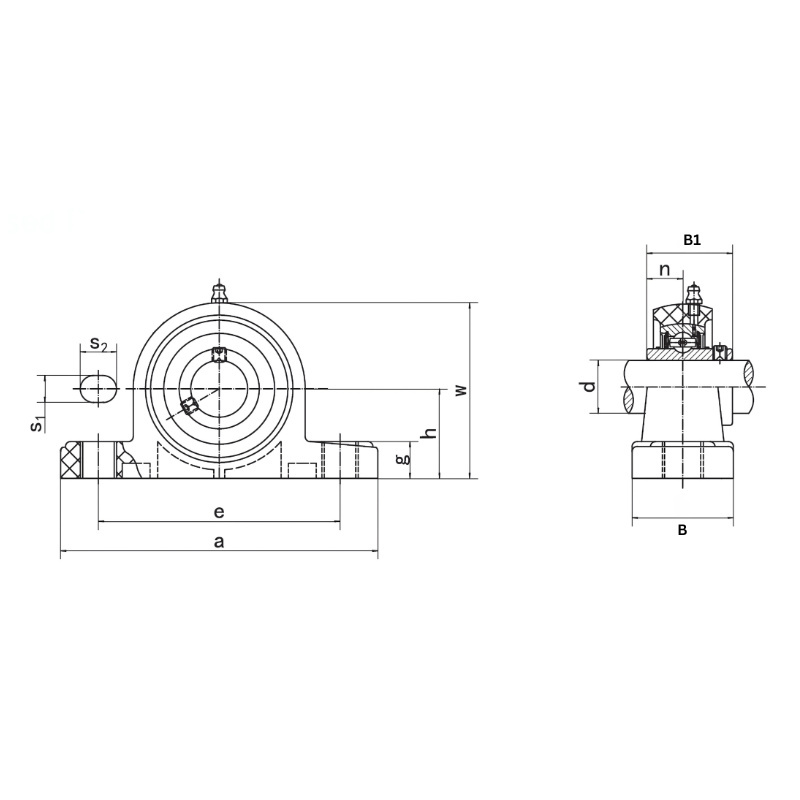

Bearing Number Inner Diameter (d) MM Width (B) MM Dimension-B1 (MM) w a g h e n Bolt Size (MM) f S1 S2 Weight (KG) Housing No.
SS-UCPPL212 60 2-1/4 ; 2-5116 ; 2-3/8 ;2-7/ 16 70.0 2-3/4 65.1 2.563 138.0 5-7116 241 .0 9-1/2 25.0 63164 69.8 2-3/4 184.0 7-1/4 25.4 1.000 M 16 5/8 60 20.0 25/32 23.0 29/32 1.52 PPL212
