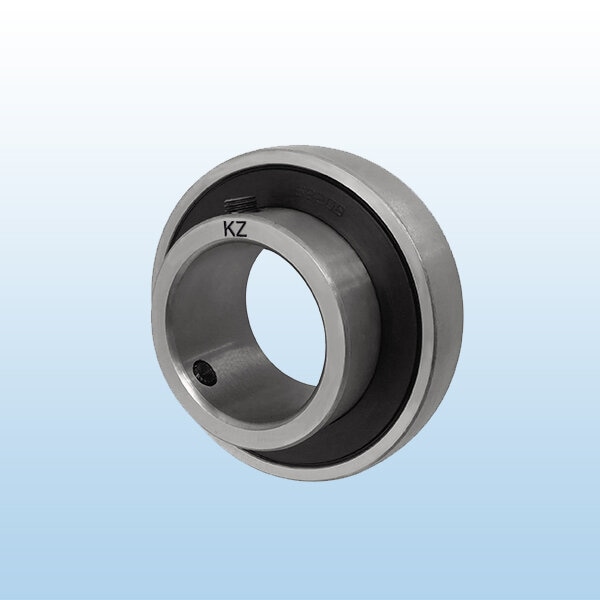

UC 200

FUR-006AB890

100 In stock

Dincidunteros

  • The UC wide inner ring ball bearing uses a popular set screw locking mechanism and is suggested for industrial applications where normal loads are encountered.
  • The set screw mounting feature is ideal for reversing load applications.
  • Bearing pre-lubricated and ready for immediate installation.
  • The wide inner ring provides effective shaft support for a broad range of industrial applications.
  • The positive contact of the land-riding bonded nitrile seal helps protect against harmful contaminants and retains lubricant under severe operating conditions.
  • An external steel flinger provides additional protection from contamination.
  • The UC series features super-finished raceways, grade-10 balls for smooth running, and low noise operation.
  • UC series-wide inner ring ball bearings have spherical outside diameters for use in housings with corresponding spherical inside surfaces to compensate for shaft misalignment.

Applications and industry: AGRICULTUREAUTOMOTIVECEMENT INDUSTRYCRUSHER INDUSTRYHEAVY MACHINERY EQUIPMENTSHOME APPLIANCESMINING SECTORMETAL INDUSTRYFLUID MACHINERYTEXTILE INDUSTRY



Send query Buy Now

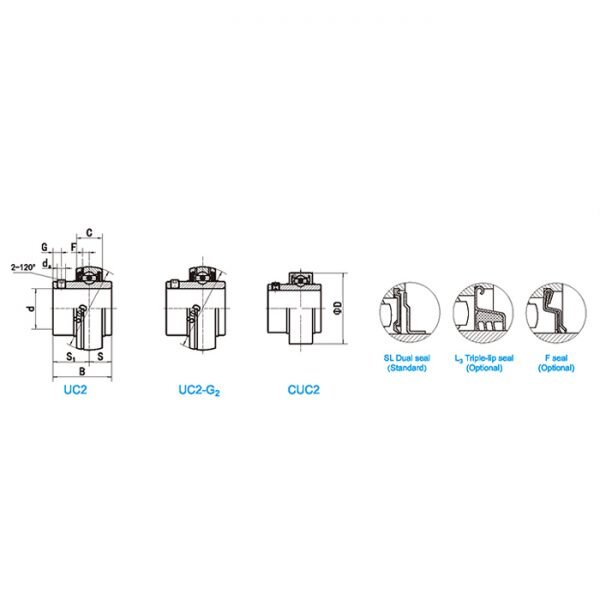

Bearing Number Inner Diameter (d) MM Outer Diameter (D) MM Width (B) MM s C s1 ds G F Dynamic Load Capacity Static Load Capacity Weight (KG)
UCS 201 12 40 27.4 11.5 14 15.9 M5x0.8 4 3.7 9600 4600 0.12
UCS 201-8 1/2 1.5748 1.0787 0.4528 0.5512 0.626 10-32UNF 0.157 0.146 9600 4600 0.12
UCS 202 15 1.5748 1.0787 0.4528 0.5512 0.626 10-32UNF 0.157 0.146 9600 4600 0.11
UCS 202-9 9/16 1.5748 1.0787 0.4528 0.5512 0.626 10-32UNF 0.157 0.146 9600 4600 0.11
UCS 202-10 5/8 1.5748 1.0787 0.4528 0.5512 0.626 10-32UNF 0.157 0.146 9600 4600 0.11
UCS 203 17 1.5748 1.0787 0.4528 0.5512 0.626 10-32UNF 0.157 0.146 9600 4600 0.1
UCS 203-11 11/16 1.5748 1.0787 0.4528 0.5512 0.626 10-32UNF 0.157 0.146 9600 4600 0.1
UC 201 12 47 31 12.7 17 18.3 M6x1 4.8 3.7 12800 6600 0.2
UC 201-8 1/2 1.8504 1.2205 0.5 0.6693 0.72 1/4-28UNF 0.189 0.146 12800 6600 0.19
UC 202 15 1.8504 1.2205 0.5 0.6693 0.72 1/4-28UNF 0.189 0.146 12800 6600 0.19
UC 202-9 9/16 1.8504 1.2205 0.5 0.6693 0.72 1/4-28UNF 0.189 0.146 12800 6600 0.19
UC 202-10 5/8 1.8504 1.2205 0.5 0.6693 0.72 1/4-28UNF 0.189 0.146 12800 6600 0.19
UC 203 17 1.8504 1.2205 0.5 0.6693 0.72 1/4-28UNF 0.189 0.146 12800 6600 0.18
UC 203-11 11/16 1.8504 1.2205 0.5 0.6693 0.72 1/4-28UNF 0.189 0.146 12800 6600 0.17
UC 204 20 47 31 12.7 17 18.3 M6x1 4.8 3.7 12800 6600 0.16
UC 204-12 3/4 1.8504 1.2205 0.5 0.6693 0.72 1/4-28UNF 0.189 0.146 12800 6600 0.16
UC 205 25 52 34.1 14.3 17 19.8 M6x1 5 3.9 14000 7850 0.19
UC 205-13 13/16 2.0472 1.3425 0.563 0.6693 0.78 1/4-28UNF 0.197 0.154 14000 7850 0.23
UC 205-14 7/8 2.0472 1.3425 0.563 0.6693 0.78 1/4-28UNF 0.197 0.154 14000 7850 0.22
UC 205-15 15/16 2.0472 1.3425 0.563 0.6693 0.78 1/4-28UNF 0.197 0.154 14000 7850 0.2
UC 205-16 1 2.0472 1.3425 0.563 0.6693 0.78 1/4-28UNF 0.197 0.154 14000 7850 0.19
UC 206 30 62 38.1 15.9 19 22.2 M6x1 5 5 19450 11250 0.3
UC 206-17 1-1/16 2.4409 1.5 0.626 0.748 0.874 1/4-28UNF 0.197 0.197 19450 11250 0.31
UC 206-18 1-1/8 2.4409 1.5 0.626 0.748 0.874 1/4-28UNF 0.197 0.197 19450 11250 0.32
UC 206-19 1-3/16 2.4409 1.5 0.626 0.748 0.874 1/4-28UNF 0.197 0.197 19450 11250 0.3
UC 206-20 1-1/4 2.4409 1.5 0.626 0.748 0.874 1/4-28UNF 0.197 0.197 19450 11250 0.29
UC 207 35 72 42.9 17.5 20 25.4 M8x1 7 5.7 25700 15200 0.45
UC 207-20 1-1/4 2.8346 1.689 0.689 0.7874 1 5/16-24UNF 0.276 0.224 25700 15200 0.51
UC 207-21 1-5/16 2.8346 1.689 0.689 0.7874 1 5/16-24UNF 0.276 0.224 25700 15200 0.48
UC 207-22 1/3/8 2.8346 1.689 0.689 0.7874 1 5/16-24UNF 0.276 0.224 25700 15200 0.45
UC 207-23 1-7/16 2.8346 1.689 0.689 0.7874 1 5/16-24UNF 0.276 0.224 25700 15200 0.42
UC 208 40 80 49.2 19 21 30.2 M8x1 8 6.2 29500 18100 0.6
UC 208-24 1-1/2 3.1496 1.937 0.748 0.8268 1.189 5/16-24UNF 0.315 0.244 29500 18100 0.64
UC 208-25 1-9/16 3.1496 1.937 0.748 0.8268 1.189 5/16-24UNF 0.315 0.244 29500 18100 0.61
UC 209 45 85 49.2 19 22 30.2 M8x1 8 6.4 32700 20900 0.65
UC 209-26 1-5/8 3.3465 1.937 0.748 0.8661 1.189 5/16-24UNF 0.315 0.252 32700 20900 0.75
UC 209-27 1-11/16 3.3465 1.937 0.748 0.8661 1.189 5/16-24UNF 0.315 0.252 32700 20900 0.71
UC 209-28 1-3/4 3.3465 1.937 0.748 0.8661 1.189 5/16-24UNF 0.315 0.252 32700 20900 0.67
UC 210 50 90 51.6 19 24 32.6 M10x1 10 6.5 35000 23200 0.75
UC 210-29 1-13/16 3.5433 2.0315 0.748 0.9449 1.283 3/8-24UNF 0.394 0.256 35000 23200 0.87
UC 210-30 1-7/8 3.5433 2.0315 0.748 0.9449 1.283 3/8-24UNF 0.394 0.256 35000 23200 0.82
UC 210-31 1-15/16 3.5433 2.0315 0.748 0.9449 1.283 3/8-24UNF 0.394 0.256 35000 23200 0.77
UC 210-32 2 3.5433 2.0315 0.748 0.9449 1.283 3/8-24UNF 0.394 0.256 35000 23200 0.73
UC 211 55 100 55.6 22.2 25 33.4 M10x1 10 7 43300 29200 0.99
UC 211-32 2 3.937 2.189 0.874 0.9843 1.315 3/8-24UNF 0.394 0.276 43300 29200 1.14
UC 211-33 2-1/16 3.937 2.189 0.874 0.9843 1.315 3/8-24UNF 0.394 0.276 43300 29200 1.08
UC 211-34 2-1/8 3.937 2.189 0.874 0.9843 1.315 3/8-24UNF 0.394 0.276 43300 29200 1.07
UC 211-35 2-3/16 3.937 2.189 0.874 0.9843 1.315 3/8-24UNF 0.394 0.276 43300 29200 0.967
UC 212 60 110 65.1 25.4 27 39.7 M10x1 10 7.6 47700 32800 1.32
UC 212-36 2-1/4 4.3307 2.563 1 1.063 1.563 3/8-24UNF 0.394 0.299 47700 32800 1.52
UC 212-37 2-5/16 4.3307 2.563 1 1.063 1.563 3/8-24UNF 0.394 0.299 47700 32800 1.44
UC 212-38 2-3/8 4.3307 2.563 1 1.063 1.563 3/8-24UNF 0.394 0.299 47700 32800 1.37
UC 212-39 2-7/16 4.3307 2.563 1 1.063 1.563 3/8-24UNF 0.394 0.299 47700 32800 1.3
UC 213 65 120 65.1 25.4 28 39.7 M10x1 10 8.5 57200 40000 1.7
UC 213-40 2-1/2 4.3307 2.563 1 1.1024 1.563 3/8-24UNF 0.394 0.335 57200 40000 1.79
UC 213-41 2-9/16 4.3307 2.563 1 1.1024 1.563 3/8-24UNF 0.394 0.335 57200 40000 1.7
UC 214 70 125 74.6 30.2 29 44.4 M12x1.5 12 8.9 62100 44800 1.94
UC 214-42 2-5/8 4.9213 2.937 1.189 1.1417 1.748 7/16-20UNF 0.472 0.35 62100 44800 2.15
UC 214-43 2-11/16 4.9213 2.937 1.189 1.1417 1.748 7/16-20UNF 0.472 0.35 62100 44800 2.05
UC 214-44 2-3/4 4.9213 2.937 1.189 1.1417 1.748 7/16-20UNF 0.472 0.35 62100 44800 1.95
UC 215 75 130 77.8 33.3 30 44.5 M12x1.5 12 9.2 66200 49300 2.16
UC 215-45 2-13/16 5.1181 3.063 1.311 1.1811 1.752 7/16-20UNF 0.472 0.362 66200 49300 2.16
UC 215-46 2-7/8 5.1181 3.063 1.311 1.1811 1.752 7/16-20UNF 0.472 0.362 66200 49300 2.41
UC 215-47 2-15/16 5.1181 3.063 1.311 1.1811 1.752 7/16-20UNF 0.472 0.362 66200 49300 2.3
UC 215-48 3 5.1181 3.063 1.311 1.1811 1.752 7/16-20UNF 0.472 0.362 66200 49300 2.1
UC 216 80 140 82.6 33.3 32 49.3 M12x1.5 12 9.5 72600 53300 2.65
UC 216-49 3-1/16 5.5118 3.252 1.311 1.2598 1.9409 7/16-20UNF 0.472 0.374 72600 53300 2.83
UC 216-50 3-1/8 5.5118 3.252 1.311 1.2598 1.9409 7/16-20UNF 0.472 0.374 72600 53300 2.7
UC 216-51 3-3/16 5.5118 3.252 1.311 1.2598 1.9409 7/16-20UNF 0.472 0.374 72600 53300 2.57
UC 217 85 150 85.7 34.1 34 51.6 M12x1.5 12 10.2 83300 63700 3.29
UC 217-52 3-1/4 5.9055 3.374 1.341 1.3386 2.031 7/16-20UNF 0.472 0.402 83300 63700 3.41
UC 217-53 3-5/16 5.9055 3.374 1.341 1.3386 2.031 7/16-20UNF 0.472 0.402 83300 63700 3.37
UC 217-55 3-7/16 5.9055 3.374 1.341 1.3386 2.031 7/16-20UNF 0.472 0.402 83300 63700 3.08
UC 218 90 160 96 39.7 36 56.3 M12x1.5 12 11.2 96000 71100 4.04
UC 218-56 3-1/2 6.2992 3.7795 1.563 1.4173 2.217 1/2-20UNF 0.472 0.441 96000 71100 4.15
UC 220 100 180 108 42 40 66 M14x1.5 16 13.1 122000 92800 4.56
UC 220-64 4 7.0866 4.252 1.6535 1.5748 2.5984 9/16-18UNF 0.6299 0.5157 122000 92800 4.35
