Spherical Roller Thrust Bearing

FUR-006AB890

100 In stock

Dincidunteros

Spherical roller thrust bearing is a rolling-element bearing of thrust type that permits rotation with low friction and permits angular misalignment. Spherical roller thrust bearings have asymmetrically sphered rollers. The bearing is designed to take radial loads and heavy axial loads in one direction. Generally these bearings support a rotating shaft in the bore of the shaft washer that may be misaligned in respect to the housing washer. The misalignment is possible due to the spherical internal shape of the house washer. These bearings are suitable for applications where the shaft relative to the housing bore is prone to angular misalignment's.

CAGE DESIGNS : Machined Brass Cage (M), Pressed Steel Cage (E), EJ

Applications and industry: CEMENT INDUSTRYCRUSHER INDUSTRYHEAVY MACHINERY EQUIPMENTSMINING SECTORMETAL INDUSTRYFLUID MACHINERYTEXTILE INDUSTRY, GEARBOXES, PULP AND PAPER PROCESSING EQUIPMENT, MARINE PROPULSION AND OFFSHORE DRILLING, CRANES AND SWING BRIDGES, WATER TURBINES, EXTRUDERS FOR INJECTION MOLDING.

KZ BEARING SERIES : 29200,29300,29400

MATERIAL : Chrome Steel SAE52100/100Cr6/GCr15

Send query Buy Now

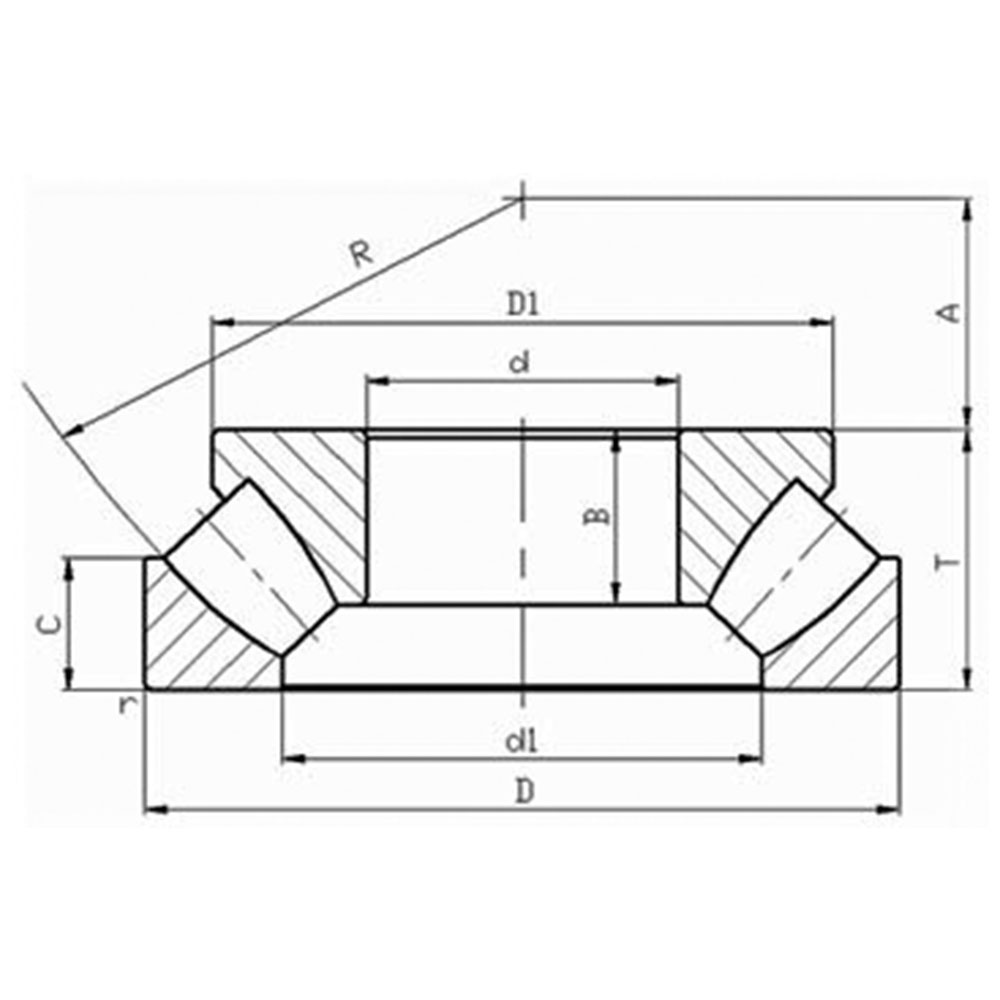

Bearing Number Inner Diameter (d) MM Outer Diameter (D) MM Width (B) MM d1 Basic Load Rating (N) Dyn. C Basic Load Rating (N) Stat. C0 Reference Speed Limiting Speed Weight (KG)
29230 150 215 39 176 408 1600 1800 2800 4.6
29232 160 225 39 188 357 1460 1700 2700 4.8
29234 170 240 42 201 408 1660 1600 2600 6
29236 180 250 42 208 495 2040 1600 2600 6.3
29238 190 270 48 226 518 2200 1400 2300 8.7
29240 200 280 48 232.5 656 2650 1400 2200 8.9
29244 220 300 48 251.5 690 3000 1300 2200 10
29248 240 340 60 283 799 3450 1100 1800 16.5
29252 260 360 60 302 817 3650 1100 1700 18.5
29256 280 380 60 323 863 4000 1000 1700 19.5
29260 300 420 73 353 1070 4800 900 1400 30.5
29264 320 440 73 372 1110 5100 850 1400 33
29268 340 460 73 395 1130 5400 850 1300 33.5
29272 360 500 85 423 1460 6800 750 1200 52
29276 380 520 85 441 1580 7650 700 1100 53
29280 400 540 85 460 1610 8000 700 1100 55.5
29284 420 580 95 489 1990 9800 630 1000 75.5
29288 440 600 95 508 2070 10400 630 1000 78
29292 460 620 95 530 2070 10600 600 950 81
29296 480 650 103 556 2350 11800 560 900 98
29317 85 150 39 109.5 380 1060 2400 4000 2.8
29318 90 155 39 115 400 1080 2400 4000 2.9
29320 100 170 42 127.5 465 1290 2200 3600 3.7
29322 110 190 48 140 610 1730 1900 3200 5.3
29324 120 210 54 154 765 2120 1700 2800 7.4
29326 130 225 58 165.5 865 2500 1600 2600 9
29328 140 240 60 177 980 2850 1500 2600 10.5
29330 150 250 60 190 1000 2850 1500 2400 11
29332 160 270 67 203 1180 3450 1300 2200 14.5
29334 170 280 67 215 1200 3550 1300 2200 15
29336 180 300 73 227 1430 4300 1200 2000 19.5
29338 190 320 78 243.5 1630 4750 1100 1900 23.5
29340 200 340 85 257 1860 5500 1000 1700 29.5
29344 220 360 85 273.5 2000 6300 1000 1700 33.5
29348 240 380 85 295.5 2040 6550 1000 1600 35.5
29352 260 420 95 324 2550 8300 850 1400 49
29356 280 440 95 343 2550 8650 850 1400 53
29360 300 480 109 372 3100 10600 750 1200 75
29364 320 500 109 391 3350 11200 750 1200 78
29368 340 540 122 428 2710 11000 600 1100 105
29372 360 560 122 448 2760 11600 600 1100 110
29376 380 600 132 477 3340 14000 530 1000 140
29380 400 620 132 494 3450 14600 530 950 150
29384 420 650 140 520 3740 16000 500 900 170
29388 440 680 145 540 4490 19300 480 850 180
29392 460 710 150 567 4310 19000 450 800 215
29396 480 730 150 591 4370 19600 450 800 220
29412 60 130 42 85.5 390 915 2800 5800 2.6
29413 65 140 45 91.5 455 1080 2600 4800 3.2
29414 70 150 48 99 520 1250 2400 4300 3.9
29415 75 160 51 105.5 600 1430 2400 4000 4.7
29416 80 170 54 112.5 670 1630 2200 3800 5.6
29417 85 180 58 121 735 1800 2000 3600 6.8
29418 90 190 60 127.5 815 2000 1900 3400 7.8
29420 100 210 67 141.5 980 2500 1700 3000 10.5
29422 110 230 73 155.3 1180 3000 1600 2800 13.5
29424 120 250 78 171 1370 3450 1500 2600 17.5
29426 130 270 85 184.5 1560 4050 1300 2400 22
29428 140 280 85 194.5 1630 4300 1300 2400 23
29430 150 300 90 207.5 1860 5100 1200 2200 28
29432 160 320 95 223.5 2080 5600 1100 2000 33.5
29434 170 340 103 236 2360 6550 1100 1900 44.5
29436 180 360 109 250 2600 7350 1000 1800 52.5
29438 190 380 115 264.5 2850 8000 950 1700 60.5
29440 200 400 122 277.5 3200 9000 850 1600 72
29444 220 420 122 300 3350 9650 850 1500 75
29448 240 440 122 322 3400 10200 850 1500 80
29452 260 480 132 346 4050 12900 750 1300 105
29456 280 520 145 372 4900 15300 670 1200 135
29460 300 540 145 392 4310 16600 600 1200 140
29464 320 580 155 422 4950 19000 560 1100 175
29468 340 620 170 445 5750 22400 500 1000 220
29472 360 640 170 474 5350 21200 500 950 230
29476 380 670 175 494 5870 24000 480 900 260
29480 400 710 185 525 6560 26500 450 850 310
29484 420 730 185 545 6730 27500 430 850 325
29488 440 780 206 577 7820 32000 380 750 410
29492 460 800 206 596 7990 33500 380 750 425
29496 480 850 224 625 9550 39000 340 670 550
