H 3100

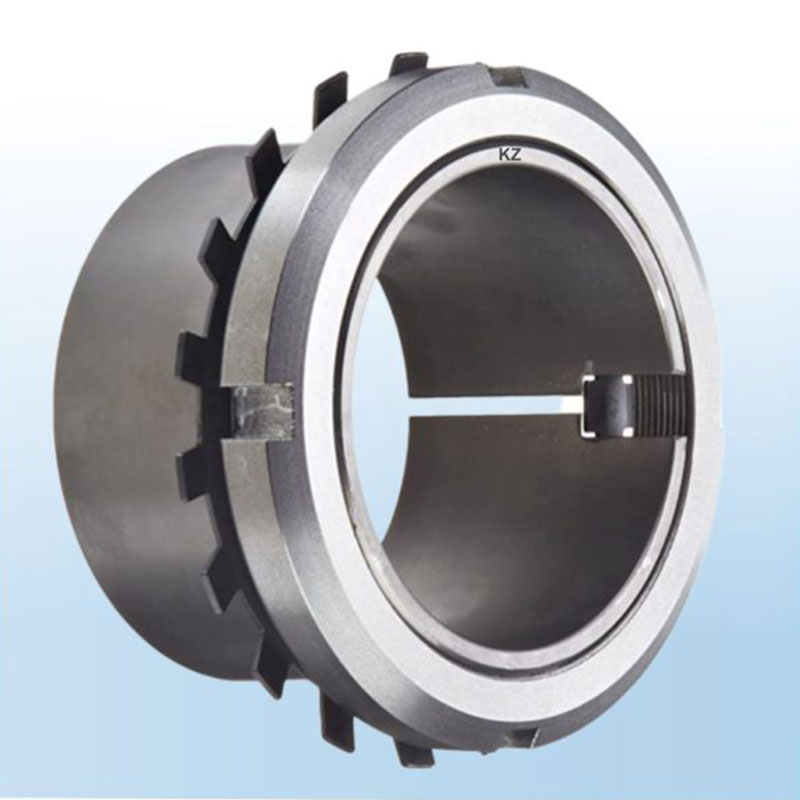

This is a series of adapter assemblies used for wider series bearings. They are the most commonly used method for locating tapered bore roller bearings onto a cylindrical shaft. This series of adapters are used with 231 series spherical roller bearings.
Features and benefits
- Heavy-duty positive locking method for industrial applications.
- Easy to install at any position on a straight shaft without the need for the additional locating device.
- Common techniques and design allow simple installation and removal.
- Standard Locknut sets the industry locknut standard
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

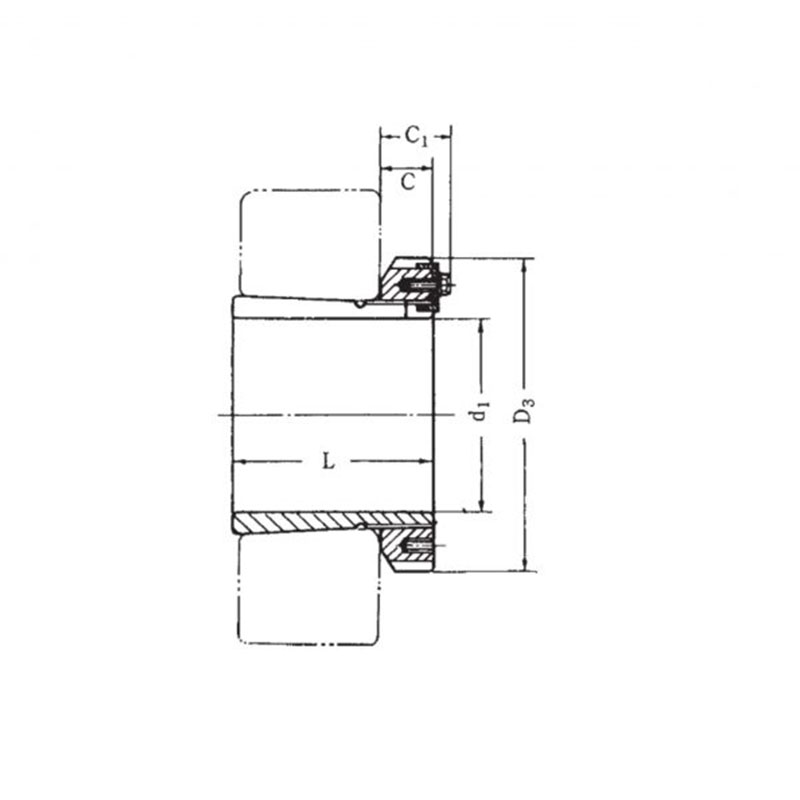

| Bearing Number | H (MM) | HE | L (MM) | D3 | C (MM) | C1 (MM) | HE | H | Weight (KG) |
|---|---|---|---|---|---|---|---|---|---|
| H3122 | 100 | 4 | 81 | 145 | 21 | - | HE 3122 | H 3122 | 2.25 |
| H3124 | 110 | 4.25 | 88 | 155 | 22 | - | 24 | H 3124 | 2.64 |
| H3126 | 115 | 4 1/2 | 92 | 165 | 23 | - | 26 | H 3126 | 3.66 |
| H3128 | 125 | 5 | 97 | 180 | 24 | HE 3128 | H 3128 | 4.34 | |
| H3130 | 135 | 5 1/4 | 111 | 195 | 26 | 30 | H 3130 | 5.54 | |
| H3132 | 140 | 5 1/2 | 119 | 210 | 28 | - | 32 | H 3132 | 7.70 |
| H3134 | 150 | 6 | 122 | 220 | 29 | - | HE 3134 | H 3134 | 8.40 |
| H3136 | 160 | 6 1/2 | 131 | 230 | 30 | - | 36 | H 3136 | 9.50 |
| H3138 | 170 | 6 3/4 | 141 | 240 | 31 | - | 38 | H 3138 | 10.8 |
| H3140 | 180 | 7 | 150 | 250 | 32 | - | HE 3140 | H 3140 | 12.1 |
| H3144 | 200 | - | 158 | 280 | 32 | 44 | - | H 3144 | 14.7 |
| H3148 | 220 | - | 169 | 300 | 34 | 46 | - | H 3148 | 17.3 |
| H3152 | 240 | - | 187 | 330 | 36 | 49 | - | H 3152 | 22.0 |
| H3156 | 260 | - | 192 | 350 | 38 | 51 | - | H 3156 | 24.5 |
| H3160 | 280 | - | 208 | 380 | 40 | 53 | H 3160 | 30.3 | |
| H3164 | 300 | - | 226 | 400 | 42 | 56 | H 3164 | 35.0 | |
| H3168 | 320 | - | 254 | 440 | 55 | 72 | H 3168 | 49.5 | |
| H3172 | 340 | - | 259 | 460 | 58 | 75 | - | H 3172 | 54.5 |
| H3176 | 360 | - | 264 | 490 | 60 | 77 | - | H 3176 | 61.6 |
| H3180 | 380 | - | 272 | 520 | 62 | 82 | - | H 3180 | 70.8 |
| H3184 | 400 | - | 304 | 540 | 70 | 90 | - | H 3184 | 84.5 |
| H3188 | 410 | - | 307 | 560 | 70 | 90 | H 3188 | 108.0 | |
| H3192 | 430 | - | 326 | 580 | 75 | 95 | H 3192 | 116.0 | |
| H3196 | 450 | - | 335 | 620 | 75 | 95 | H 3196 | 133.0 | |
| H31/500 | 470 | - | 356 | 630 | 80 | 100 | - | H 31/500 | 146.0 |
