H 300

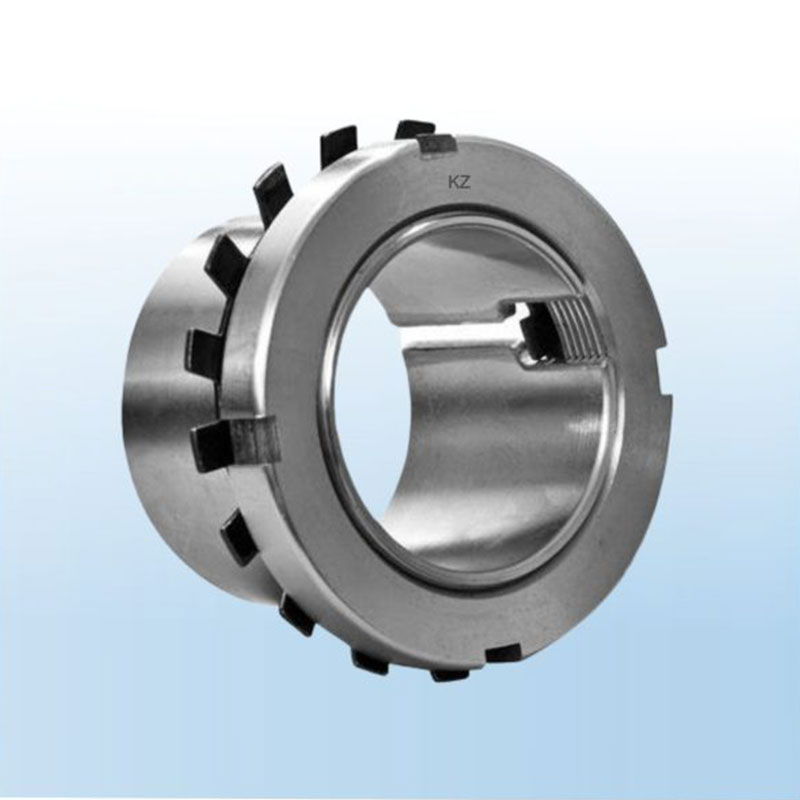

This series of metric adapter assemblies accommodate standard small-bore bearings. They are the most commonly used method for locating tapered bore balls or roller bearings onto a cylindrical shaft. This series of adapters are used with 223 and 232 series spherical roller bearings.
Features and benefits
- Heavy-duty positive locking method for industrial applications.
- Easy to install at any position on a straight shaft without the need for the additional locating device.
- Common techniques and design allow simple installation and removal.
- Standard Locknut sets the industry locknut standard
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

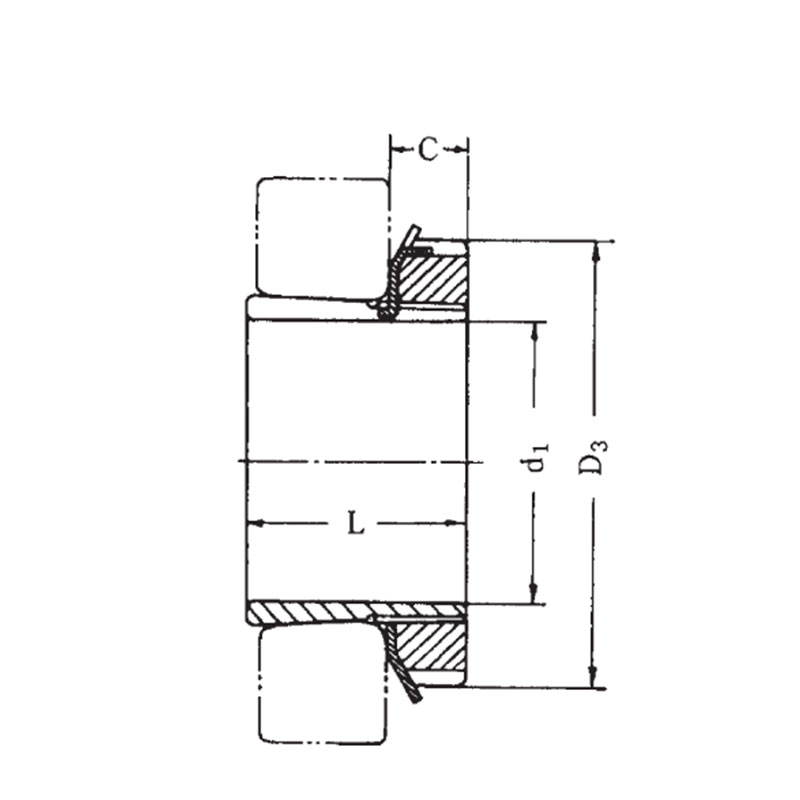

| Bearing Number | H (MM) | HE | HS | HA | L (MM) | D3 | C (MM) | HE | HS | HA | Height | r2 min | Weight (KG) | LINK BELT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 195 | SAF | 113.5 | 1002689 / 1003457 / 100167600 / | |||||||||||
| 199 | Merdedes | |||||||||||||
| H305 | 20 | 44654 | - | 29 | 38 | 8 | HE 305 | - | - | 0.075 | ||||
| H306 | 25 | 1 | 15/16 | 31 | 45 | 8 | 6 | - | HA 306 | 0.109 | ||||
| H307 | 30 | 1.125 | 1.1875 | 35 | 52 | 9 | - | HS 307 | 7 | 0.142 | ||||
| H308 | 35 | 1.25 | 1.375 | - | 36 | 58 | 10 | HE 308 | HS 308 | - | 0.189 | |||
| H309 | 40 | 1.5 | 1.625 | 1.4375 | 39 | 65 | 11 | 9 | 9 | HA 309 | 0.248 | |||
| H310 | 45 | 1.75 | 1.6875 | 42 | 70 | 12 | 10 | - | 10 | 0.302 | ||||
| H311 | 50 | 2 | 1.875 | 1 15/16 | 45 | 75 | 12 | HE 311 | HS 311 | HA 311 | 0.345 | |||
| H312 | 55 | 2.125 | - | 47 | 80 | 13 | - | 12 | - | 0.393 | ||||
| H313 | 60 | 2.25 | 2.375 | 2 3/16 | 50 | 85 | 14 | 13 | 13 | 13 | 0.459 | |||
| H314 | 60 | - | 52 | 92 | 14 | - | - | - | 0.723 | |||||
| H315 | 65 | 2.5 | 2.625 | 2 7/ 16 | 55 | 98 | 15 | HE 315 | HS 315 | HA 315 | 0.83 | |||
| H316 | 70 | 2.75 | 2 11/16 | 59 | 105 | 17 | 16 | - | 16 | 1.03 | ||||
| H317 | 75 | 3 | 2.875 | 2 15/16 | 63 | 110 | 18 | HE 317 | HE 317 | HE 317 | 1.18 | |||
| H318 | 80 | 3.125 | - | 65 | 120 | 18 | - | 18 | - | 1.37 | ||||
| H319 | 85 | - | 68 | 125 | 19 | 19 | - | - | 1.56 | |||||
| H320 | 90 | 3.5 | - | 71 | 130 | 20 | HE 320 | - | - | 1.69 | ||||
| H321 | 95 | - | 74 | 140 | 20 | - | - | - | 1.93 | |||||
| H322 | 100 | 4 | - | 77 | 145 | 21 | 22 | - | - |
