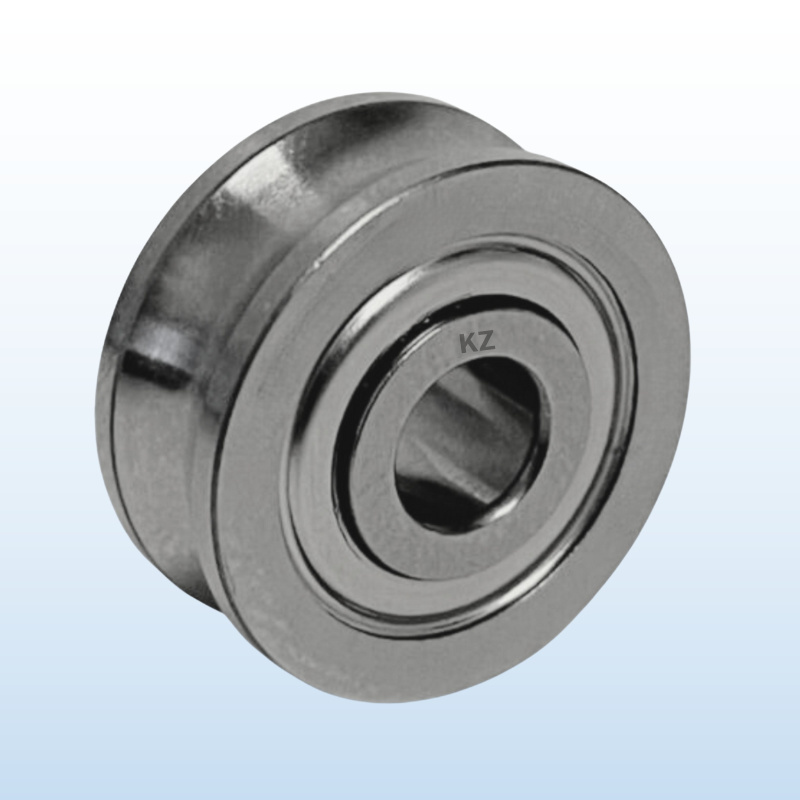

LFR LFR5302
Technical Details
| Bore Diameter (mm) d | Outer Diameter (mm) D | Width (mm) B | Weight (Kg) |
|---|---|---|---|
| 15 | 47 | 19 | 0.163 |
LFR LFR5302
Technical Details
| Bore Diameter (mm) d | Outer Diameter (mm) D | Width (mm) B | Weight (Kg) |
|---|---|---|---|
| 15 | 47 | 19 | 0.163 |

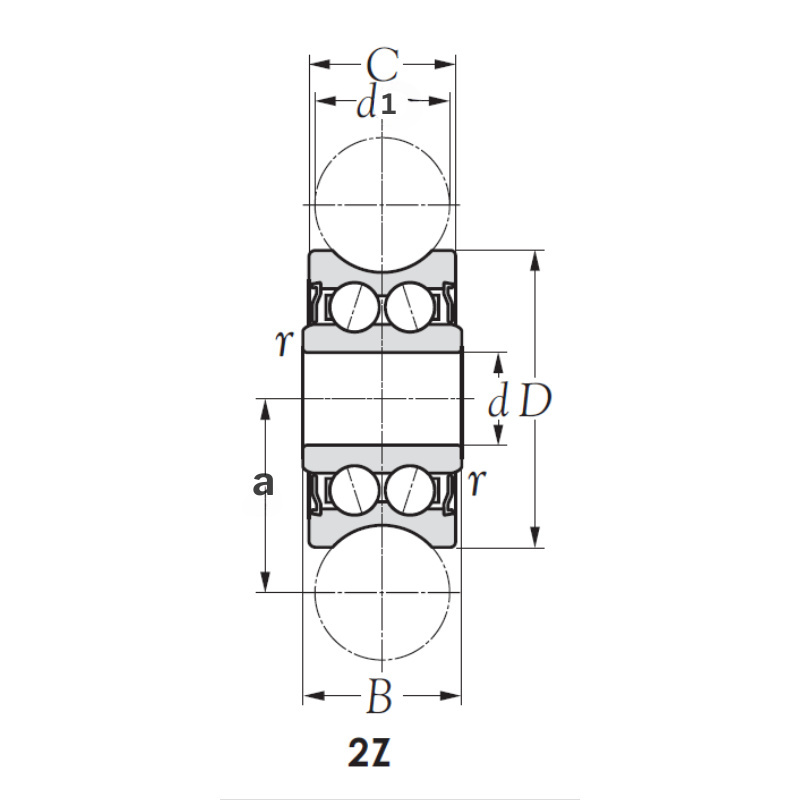

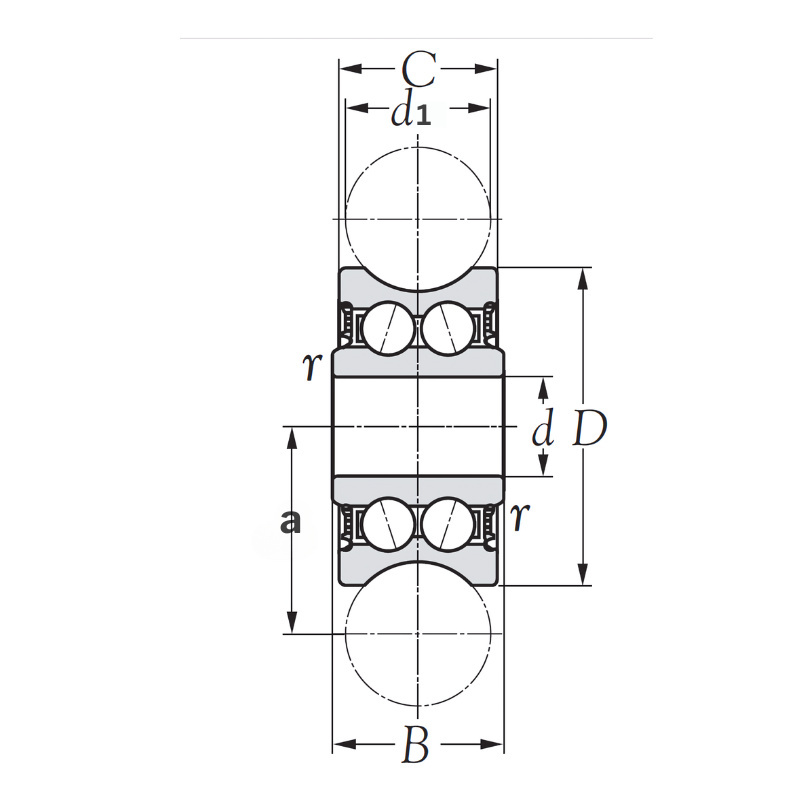

| Bearing Number | Inner Diameter (d) MM | Outer Diameter (D) MM | Width (B) MM | d1 | Width C | Seal | Weight (KG) | |
|---|---|---|---|---|---|---|---|---|
| LFR5302 | 15 | 47 | 19 | 10 | 1 | 19 | NPP | 0.163 |
| LFR5302 | 15 | 47 | 19 | 10 | 1 | 19 | KDD | 0.163 |
| LFR5301 | 12 | 42 | 19 | 10 | 0.6 | 19 | NPP | 0.13 |
| LFR5301 | 12 | 42 | 19 | 10 | 0.6 | 19 | KDD | 0.13 |
| LFR5201 | 12 | 35 | 15.9 | 10 | 0.3 | 15.9 | NPP | 0.068 |
| LFR5201 | 12 | 35 | 15.9 | 10 | 0.3 | 15.9 | KDD | 0.068 |
| LFR30/8 | 8 | 26.8 | 13 | 10 | 0.3 | 11 | NPP | 0.031 |
| LFR30/8 | 8 | 26.8 | 13 | 10 | 0.3 | 11 | KDD | 0.031 |
| LFR5201-12 | 12 | 35 | 15.9 | 12 | 0.3 | 15.9 | NPP | 0.068 |
| LFR5201-12 | 12 | 35 | 15.9 | 12 | 0.3 | 15.9 | KDD | 0.068 |
| LFR5201-14 | 12 | 39.9 | 20 | 14 | 0.3 | 18 | NPP | 0.107 |
| LFR5201-14 | 12 | 39.9 | 20 | 14 | 0.3 | 18 | KDD | 0.107 |
| LFR5204-16 | 20 | 52 | 22.6 | 16 | 0.6 | 20.6 | NPP | 0.195 |
| LFR5204-16 | 20 | 52 | 22.6 | 16 | 0.6 | 20.6 | KDD | 0.195 |
| LFR5206-20 | 25 | 72 | 25.8 | 20 | 0.6 | 23.8 | NPP | 0.435 |
| LFR5206-20 | 25 | 72 | 25.8 | 20 | 0.6 | 23.8 | KDD | 0.435 |
| LFR5301-20 | 12 | 42 | 19 | 20 | 0.6 | 19 | NPP | 0.125 |
| LFR5301-20 | 12 | 42 | 19 | 20 | 0.6 | 19 | KDD | 0.125 |
| LFR5206-25 | 25 | 72 | 25.8 | 25 | 0.6 | 23.8 | NPP | 0.425 |
| LFR5206-25 | 25 | 72 | 25.8 | 25 | 0.6 | 23.8 | KDD | 0.425 |
| LFR5207-30 | 30 | 80 | 29 | 30 | 1 | 27 | NPP | 0.66 |
| LFR5207-30 | 30 | 80 | 29 | 30 | 1 | 27 | KDD | 0.66 |
| LFR5208-40 | 40 | 98 | 38 | 40 | 1 | 36 | NPP | 1.36 |
| LFR5208-40 | 40 | 98 | 38 | 40 | 1 | 36 | KDD | 1.36 |
| LFR5308-50 | 50 | 110 | 46 | 50 | 1.1 | 44 | NPP | 1.4 |
| LFR5308-50 | 50 | 110 | 46 | 50 | 1.1 | 44 | KDD | 1.4 |
