SA 200

FUR-006AB890

100 In stock

Dincidunteros

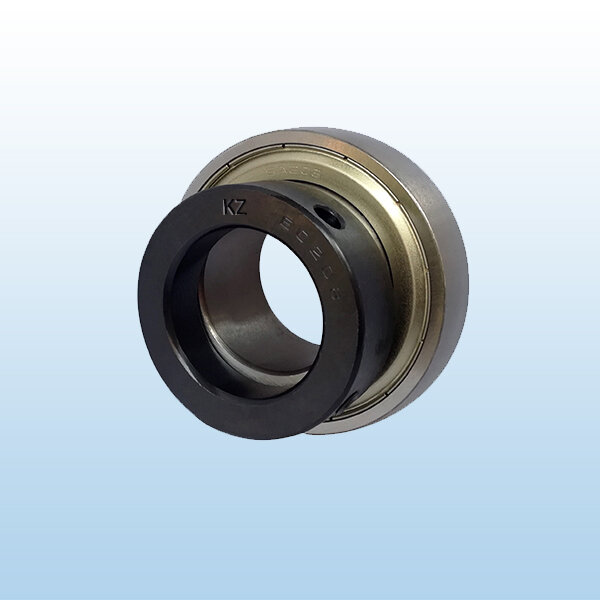

SA 200 insert bearing is self-aligning for standard load capacity. The standard lubrication feature has a drilled hole in groove on locking collar side and drilled oil hole opposite the collar to make it interchangeable with all manufacturers. SA200 Insert Bearings can also be a replacement bearing for many Pillow Blocks, 2-Bolt Flanges, 3-Bolt Flanges, 4-Bolt Flanges, and Take-up units. It can also be cost-efficient for replacing the insert bearing instead of replacing the whole unit which can be costly.

Applications and industry: AGRICULTUREAUTOMOTIVECEMENT INDUSTRYCRUSHER INDUSTRYHEAVY MACHINERY EQUIPMENTSHOME APPLIANCESMINING SECTORMETAL INDUSTRYFLUID MACHINERYTEXTILE INDUSTRY



Send query Buy Now

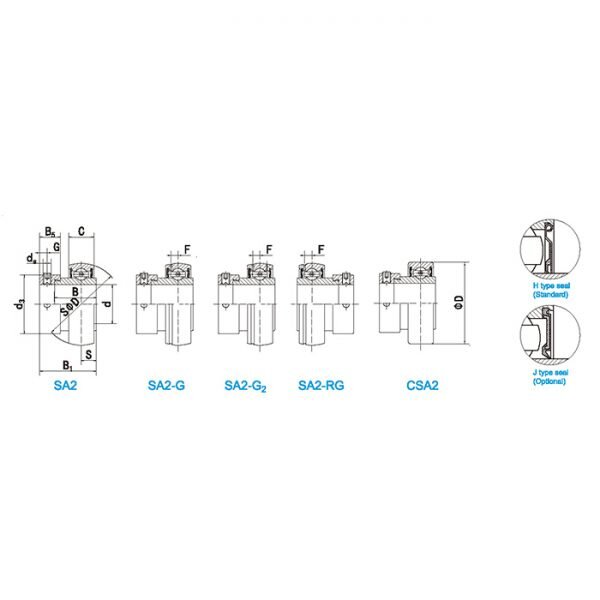

Bearing Number Inner Diameter (d) MM Outer Diameter (D) MM Width (B) MM Dimension-B1 (MM) C ds G F BS d3 S Dynamic Load Capacity Static Load Capacity Weight (KG)
SA 201 12 40 28.6 19.1 12 M6X1 4.8 3.4 13.5 28.6 6.5 9600 4600 0.12
SA 201-8 1/2 1.5748 1.126 0.752 0.4724 1/4-28UNF 0.189 0.134 0.531 1.126 0.256 9600 4600 0.12
SA 202 15 40 28.6 19.1 12 M6X1 4.8 3.4 13.5 28.6 6.5 9600 4600 0.1
SA 202-9 9/16 1.5748 1.126 0.752 0.4724 1/4-28UNF 0.189 0.134 0.531 1.126 0.256 9600 4600 0.1
SA 202-10 5/8 1.5748 1.126 0.752 0.4724 1/4-28UNF 0.189 0.134 0.531 1.126 0.256 9600 4600 0.1
SA 203 17 40 28.6 19.1 12 M6X1 4.8 3.4 13.5 28.6 6.5 9600 4600 0.09
SA 203-11 11/16 1.5748 1.126 0.752 0.4724 1/4-28UNF 0.189 0.134 0.531 1.126 0.256 9600 4600 0.09
SA 204 20 47 31 21.5 14 M6X1 4.8 4.2 13.5 33.3 7.5 12800 6600 0.16
SA 204-12 3/4 1.8504 1.22 0.8465 0.5512 1/4-28UNF 0.189 0.165 0.531 1.311 0.295 12800 6600 0.16
SA 205 25 52 31 21.5 15 M6X1 4.8 4.3 13.5 38.1 7.5 14000 7850 0.2
SA 205-13 13/16 2.0472 1.22 0.8465 0.5906 1/4-28UNF 0.189 0.169 0.531 1.5 0.295 14000 7850 0.22
SA 205-14 7/8 2.0472 1.22 0.8465 0.5906 1/4-28UNF 0.189 0.169 0.531 1.5 0.295 14000 7850 0.21
SA 205-15 15/16 2.0472 1.22 0.8465 0.5906 1/4-28UNF 0.189 0.169 0.531 1.5 0.295 14000 7850 0.21
SA 205-16 1 2.0472 1.22 0.8465 0.5906 1/4-28UNF 0.189 0.169 0.531 1.5 0.295 14000 7850 0.2
SA 206 30 62 35.7 23.8 16 M8X1 6 5 15.9 44.5 9 19450 11250 0.3
SA 206-17 1-1/16 2.4409 1.406 0.937 0.6299 5/16-24UNF 0.236 0.197 0.626 1.752 0.354 19450 11250 0.32
SA 206-18 1-1/8 2.4409 1.406 0.937 0.6299 5/16-24UNF 0.236 0.197 0.626 1.752 0.354 19450 11250 0.31
SA 206-19 1-3/16 2.4409 1.406 0.937 0.6299 5/16-24UNF 0.236 0.197 0.626 1.752 0.354 19450 11250 0.3
SA 206-20 1-1/4 2.4409 1.406 0.937 0.6299 5/16-24UNF 0.236 0.197 0.626 1.752 0.354 19450 11250 0.29
SA 207 35 72 38.9 25.4 17 M8X1 6.8 5.6 17.5 55.6 9.5 25700 15200 0.42
SA 207-20 1-1/4 2.8346 1.531 1 0.6693 5/16-24UNF 0.268 0.22 0.689 2.189 0.374 25700 15200 0.46
SA 207-21 1-5/16 2.8346 1.531 1 0.6693 5/16-24UNF 0.268 0.22 0.689 2.189 0.374 25700 15200 0.43
SA 207-22 1-3/8 2.8346 1.531 1 0.6693 5/16-24UNF 0.268 0.22 0.689 2.189 0.374 25700 15200 0.42
SA 207-23 1-7/16 2.8346 1.531 1 0.6693 5/16-24UNF 0.268 0.22 0.689 2.189 0.374 25700 15200 0.41
SA 208 40 80 43.7 30.2 18 M8X1 6.8 5.9 18.3 60.3 11 29500 18100 0.6
SA 208-24 1-1/2 3.1496 1.721 1.189 0.7087 5/16-24UNF 0.268 0.232 0.72 2.374 0.433 29500 18100 0.58
SA 208-25 1-9/16 3.1496 1.721 1.189 0.7087 5/16-24UNF 0.268 0.232 0.72 2.374 0.433 29500 18100 0.6
SA 209 45 85 43.7 30.2 19 M8X1 6.8 6.1 18.3 63.5 11 32700 20900 0.64
SA 209-26 1-5/8 3.3465 1.721 1.189 0.748 5/16-24UNF 0.268 0.24 0.72 2.5 0.433 32700 20900 0.64
SA 209-27 1-11/16 3.3465 1.721 1.189 0.748 5/16-24UNF 0.268 0.24 0.72 2.5 0.433 32700 20900 0.64
SA 209-28 1-3/4 3.3465 1.721 1.189 0.748 5/16-24UNF 0.268 0.24 0.72 2.5 0.433 32700 20900 0.64
SA 210 50 90 43.7 30.2 20 M8X1 6.8 6.5 18.3 69.9 11 35000 23200 0.72
SA 210-29 1-13/16 3.5433 1.721 1.189 0.7874 5/16-24UNF 0.268 0.265 0.72 2.752 0.433 35000 23200 0.72
SA 210-30 1-7/8 3.5433 1.721 1.189 0.7874 5/16-24UNF 0.268 0.265 0.72 2.752 0.433 35000 23200 0.72
SA 210-31 1-15/16 3.5433 1.721 1.189 0.7874 5/16-24UNF 0.268 0.265 0.72 2.752 0.433 35000 23200 0.72
SA 210-32 3.5433 1.721 1.189 0.7874 5/16-24UNF 0.268 0.265 0.72 2.752 0.433 35000 23200 0.72
SA 211 55 100 48.4 32.5 21 M10X1 8 7 20.7 76.2 12 43500 29200 1
SA 211-32 2 3.937 1.906 1.2795 0.8268 3/8-24UNF 0.315 0.276 0.815 3 0.472 43500 29200 1
SA 211-33 2-1/16 3.937 1.906 1.2795 0.8268 3/8-24UNF 0.315 0.276 0.815 3 0.472 43500 29200 1
SA 211-34 2-1/8 3.937 1.906 1.2795 0.8268 3/8-24UNF 0.315 0.276 0.815 3 0.472 43500 29200 1
SA 211-35 2-3/16 3.937 1.906 1.2795 0.8268 3/8-24UNF 0.315 0.276 0.815 3 0.472 43500 29200 1
SA 212 60 110 53.1 37.2 22 M10X1 8 7.4 22.3 84.2 13.5 47700 32900 1.34
SA 212-36 2-1/4 4.3307 2.091 1.4646 0.8661 3/8-24UNF 0.315 0.291 0.878 3.315 0.532 47700 32900 1.34
SA 212-37 2-5/16 4.3307 2.091 1.4646 0.8661 3/8-24UNF 0.315 0.291 0.878 3.315 0.532 47700 32900 1.34
SA 212-38 2-3/8 4.3307 2.091 1.4646 0.8661 3/8-24UNF 0.315 0.291 0.878 3.315 0.532 47700 32900 1.34
SA 212-39 2-7/16 4.3307 2.091 1.4646 0.8661 3/8-24UNF 0.315 0.291 0.878 3.315 0.532 47700 32900 1.34
