H 2000
FUR-006AB890
100 In stock
Dincidunteros

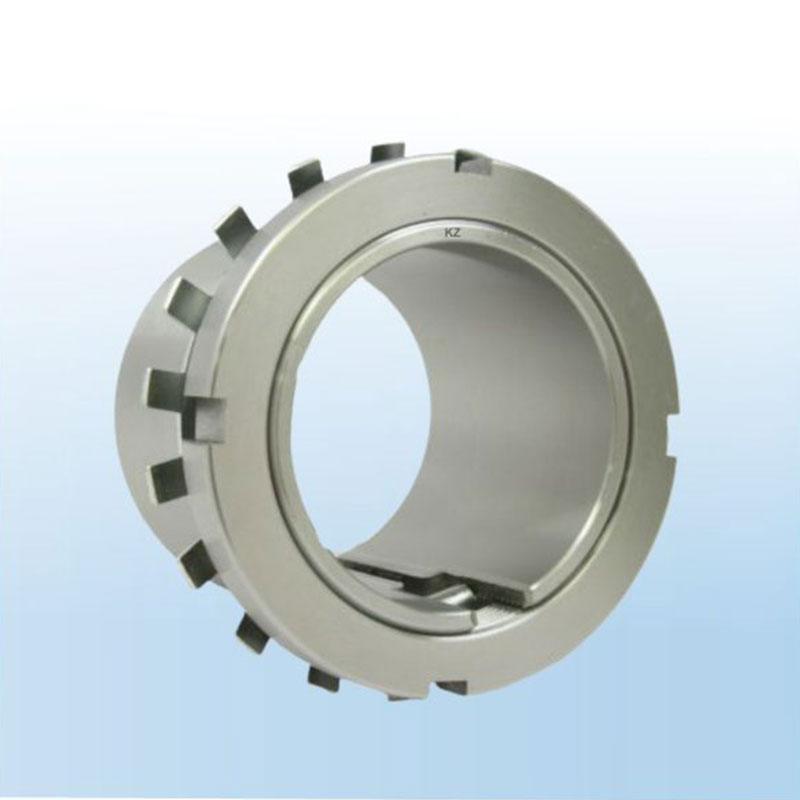

This is a wider series of adapter assemblies. They are the most commonly used method for locating tapered bore roller bearings onto a cylindrical shaft. This series of adapters are used with 223 and 232 series spherical roller bearings.
Features and benefits
- Heavy-duty positive locking method for industrial applications.
- Easy to install at any position on a straight shaft without the need for the additional locating device.
- Common techniques and design allow simple installation and removal.
- Standard Locknut sets the industry locknut standard
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

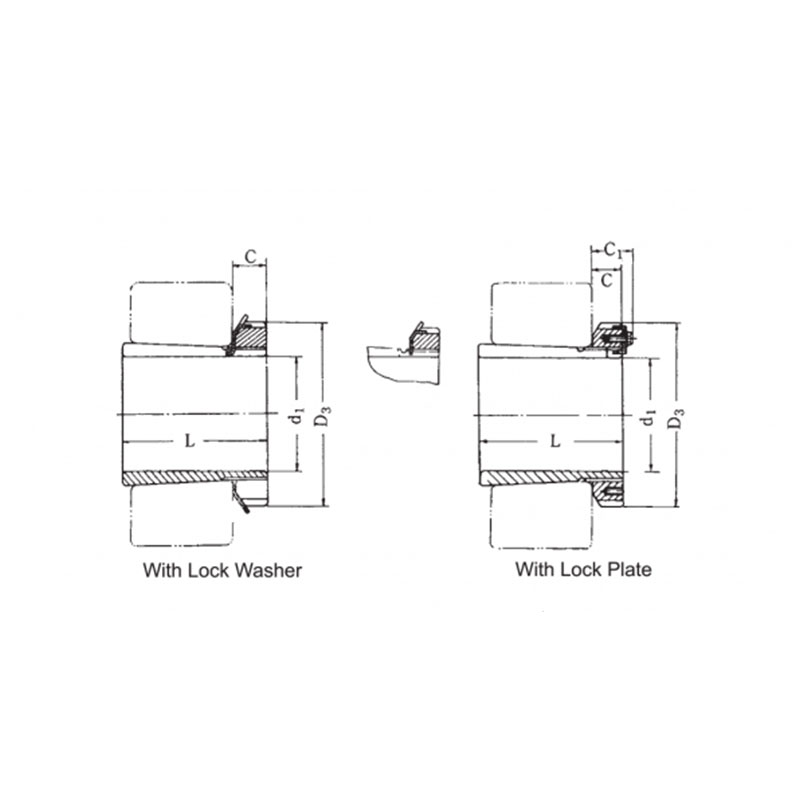

| Bearing Number | H (MM) | HE | HS | HA | L (MM) | D3 | C (MM) | C1 (MM) | HE | HS | HA | Weight (KG) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H 2305 | 20 | 3/4 | - | 35 | 38 | 8 | - | HE 2305 | - | - | 0.087 | |
| H 2306 | 25 | 1 | 15/16 | 38 | 45 | 8 | - | 6 | - | HA 2306 | 0.126 | |
| H 2307 | 30 | - | 1.125 | 1 3/16 | 43 | 52 | 9 | - | - | HS 2307 | 07 | 0.165 |
| H 2308 | 35 | 1 1/4 | 1.375 | - | 46 | 58 | 10 | - | HE 2308 | HS 2308 | - | 0.224 |
| H 2309 | 40 | 1 1/2 | 1.625 | 1 7/16 | 50 | 65 | 11 | - | 9 | 9 | HA 2309 | 0.28 |
| H 2310 | 45 | 1 3/4 | 1 11/16 | 55 | 70 | 12 | - | 10 | - | 10 | 0.362 | |
| H 2311 | 50 | 2 | 1.875 | 1 15/16 | 59 | 75 | 12 | - | HE 2311 | HS 2311 | HA 2311 | 0.42 |
| H 2312 | 55 | - | 2.125 | - | 62 | 80 | 13 | - | - | 12 | - | 0.48 |
| H 2313 | 60 | 2 1/4 | 2.375 | 2 3/16 | 65 | 85 | 14 | - | 13 | 13 | 13 | 0.556 |
| H 2314 | 60 | - | - | 68 | 92 | 14 | - | - | - | - | 0.897 | |
| H 2315 | 65 | 2 1/2 | 2.625 | 2 7/16 | 73 | 96 | 15 | - | HE 2315 | HS 2315 | HA 2315 | 1.05 |
| H 2316 | 70 | 2 3/4 | 2 11/16 | 78 | 105 | 17 | - | 16 | - | 16 | 1.28 | |
| H 2317 | 75 | 3 | 2.875 | 2 15/16 | 82 | 110 | 18 | - | HE 2317 | 18 | HA 2317 | 1.45 |
| H 2318 | 80 | - | 3.125 | - | 86 | 120 | 18 | - | - | - | - | 1.7 |
| H 2319 | 85 | 3 1/4 | - | 90 | 125 | 19 | - | HE 2319 | - | - | 1.94 | |
| H 2320 | 90 | 3 1/2 | - | 97 | 130 | 20 | - | HE 2320 | - | - | 2.15 | |
| H 2322 | 100 | 4 | - | 105 | 145 | 21 | - | 22 | - | - | 2.74 | |
| H 2324 | 110 | 4 1/4 | - | 112 | 155 | 22 | - | HE 2324 | - | - | 3.2 | |
| H 2326 | 115 | 4 1/2 | - | 121 | 165 | 23 | - | 26 | - | - | 4.6 | |
| H 2328 | 125 | 5 | - | 131 | 180 | 24 | - | 28 | - | - | 5.52 | |
| H 2330 | 135 | 5 1/4 | - | 139 | 195 | 26 | - | HE 2330 | - | - | 6.6 | |
| H 2332 | 140 | 5 1/2 | - | 147 | 210 | 28 | - | 32 | - | - | 9.15 | |
| H 2332 | 150 | 6 | - | 154 | 220 | 29 | - | 34 | - | - | 10.4 | |
| H 2336 | 160 | 6 1/2 | - | 161 | 230 | 30 | - | HE 2336 | - | - | 11.3 | |
| H 2338 | 170 | 6 3/4 | - | 169 | 240 | 31 | - | 38 | - | - | 12.6 | |
| H 2340 | 180 | 7 | - | 176 | 250 | 32 | - | 40 | - | - | 13.9 | |
| H 2344 | 200 | - | - | 183 | 280 | 32 | 44 | - | - | - | 16.6 | |
| H 2348 | 220 | - | - | 196 | 300 | 34 | 46 | - | - | - | 19.7 | |
| H 2352 | 240 | - | - | 208 | 330 | 36 | 49 | - | - | - | 24.2 | |
| H 2356 | 260 | - | - | 221 | 350 | 38 | 51 | - | - | - | 27.8 |
