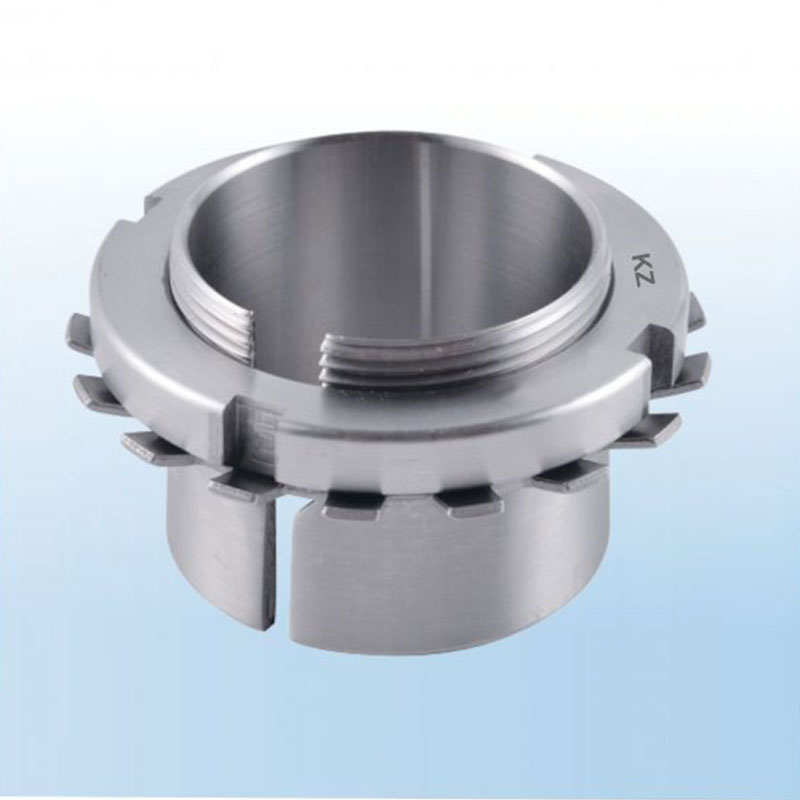

This is a series of metric adapter assemblies used for larger spherical bearings. They are the most commonly used method for locating tapered bore roller bearings onto a cylindrical shaft. This series of adapters are used with 232 series spherical roller bearings.
Features and benefits
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY
Bearing Number | Inner Diameter (d) MM | Outer Diameter (D) MM | Width (B) MM | C (MM) | C1 (MM) | Weight (KG) |
---|---|---|---|---|---|---|
H3260 | 280 | 240 | 380 | 53 | 40 | 34 |
H3264 | 300 | 258 | 400 | 56 | 42 | 39.4 |
H3268 | 320 | 288 | 440 | 72 | 55 | 54.6 |
H3272 | 340 | 299 | 460 | 75 | 58 | 60.2 |
H3276 | 360 | 310 | 490 | 77 | 60 | 69.6 |
H3280 | 380 | 328 | 520 | 82 | 62 | 81 |
H3284 | 400 | 352 | 540 | 90 | 70 | 94 |
H3288 | 410 | 361 | 560 | 90 | 70 | 118 |
H3292 | 430 | 382 | 580 | 95 | 75 | 132 |
H3296 | 450 | 397 | 620 | 95 | 75 | 152 |
H32/500 | 470 | 428 | 630 | 100 | 80 | 166 |
