H 3000
FUR-006AB890
100 In stock
Dincidunteros

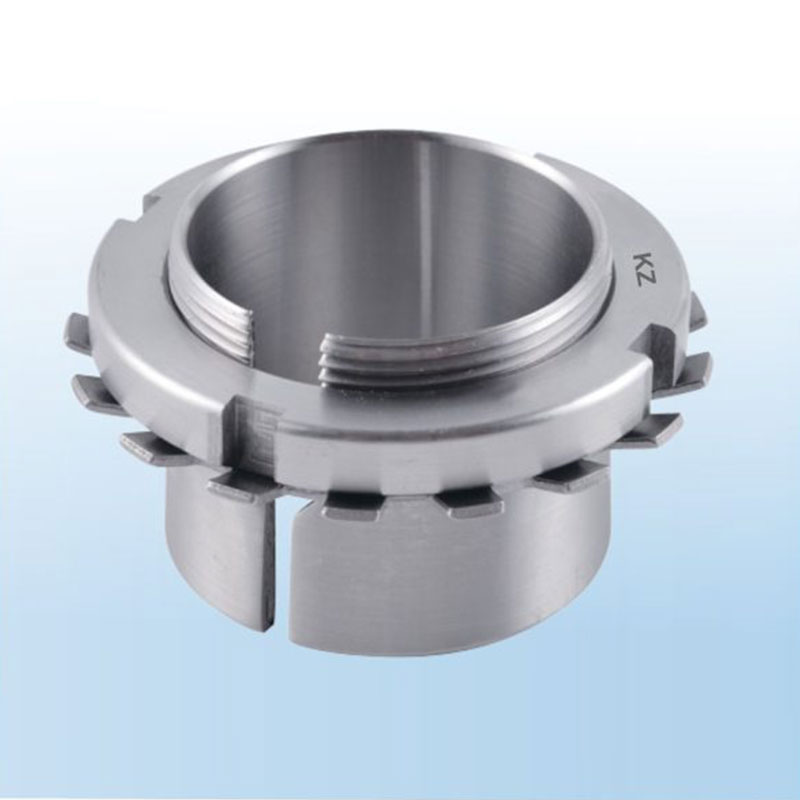

Rolling element bearings are widely used in industries such as machine tools, automobiles, electric motors and generators, aircraft turbines, and ships. Tapered bore bearings are the most common type of rolling-element bearing. KG Bearing H3000 series adapter sleeve is a bearing that is used to locate a rolling element bearing with a tapered bore on a smooth or stepped cylindrical shaft.
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

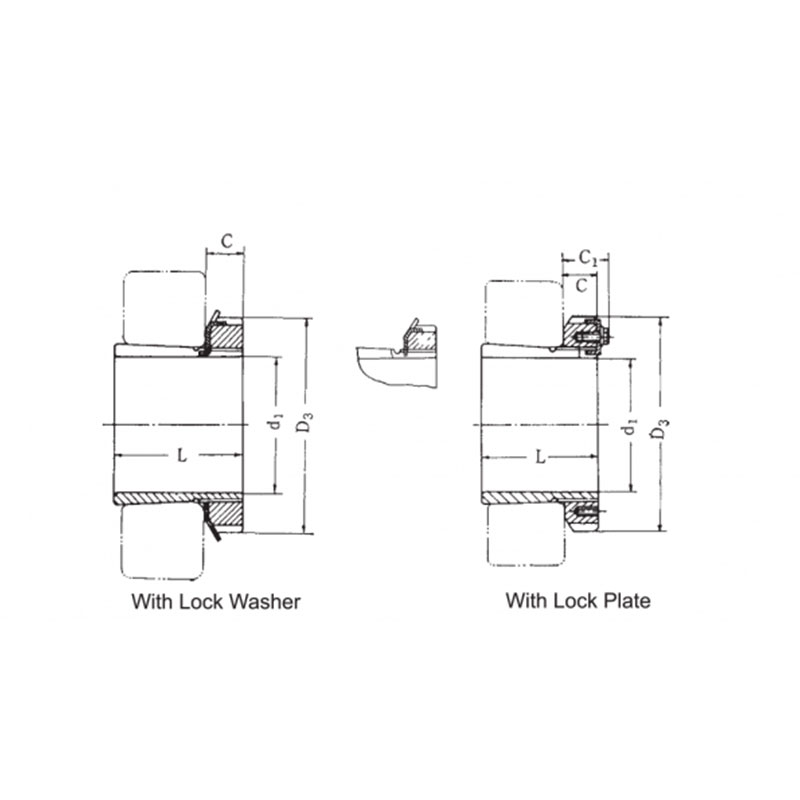

| Bearing Number | H (MM) | HE | L (MM) | D3 | C (MM) | C1 (MM) | HE | Weight (KG) |
|---|---|---|---|---|---|---|---|---|
| H3024 | 110 | 4.25 | 72 | 145 | 22 | - | HE 3024 | 1.96 |
| H3026 | 115 | 4.5 | 80 | 155 | 23 | - | HE 26 | 2.85 |
| H3028 | 125 | 5 | 82 | 165 | 24 | - | HE 28 | 3.18 |
| H3030 | 135 | 5 1/4 | 87 | 180 | 26 | - | HE 3030 | 3.90 |
| H3032 | 140 | 5 1/2 | 93 | 190 | 28 | - | HE 32 | 5.20 |
| H3034 | 150 | 6 | 101 | 200 | 29 | - | HE34 | 6.00 |
| H3036 | 160 | 6 1/2 | 109 | 210 | 30 | - | HE 3036 | 6.85 |
| H3038 | 170 | 6 3/4 | 112 | 220 | 31 | - | 38 | 7.45 |
| H3040 | 180 | 7 | 120 | 240 | 32 | - | 40 | 9.20 |
| H3044 | 200 | - | 128 | 260 | 30 | 41 | - | 10.3 |
| H3048 | 220 | - | 133 | 290 | 34 | 46 | - | 13.4 |
| H3052 | 240 | - | 147 | 300 | 34 | 46 | - | 15.6 |
| H3056 | 260 | - | 152 | 330 | 38 | 50 | - | 17.7 |
| H3060 | 280 | - | 168 | 360 | 42 | 54 | - | 22.8 |
| H3064 | 300 | - | 171 | 380 | 42 | 55 | - | 24.6 |
| H3068 | 320 | 187 | 400 | 45 | 58 | - | 28.6 | |
| H3072 | 340 | 188 | 420 | 45 | 58 | - | 30.6 | |
| H3076 | 360 | - | 193 | 450 | 48 | 62 | - | 35.8 |
| H3080 | 380 | 210 | 470 | 52 | 66 | - | 41.5 | |
| H3084 | 400 | 212 | 490 | 52 | 66 | - | 43.6 | |
| H3088 | 410 | - | 228 | 520 | 60 | 77 | - | 65.5 |
| H3092 | 430 | - | 234 | 540 | 60 | 77 | - | 69.4 |
| H3096 | 450 | - | 237 | 560 | 60 | 77 | - | 73.5 |
| H30/500 | 470 | - | 247 | 580 | 68 | 85 | - | 82.0 |
